Removal [07/2022 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [07/2022 - ]

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [10/2018 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 5

  4. REMOVE EGR VALVE ASSEMBLY

    Refer to REMOVAL [07/2022 - ]

  5. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [10/2018 - ]

  6. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    1. Disconnect the fuel tube sub-assembly from the fuel pump assembly.
      GTY818265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [10/2018 - ]

  7. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

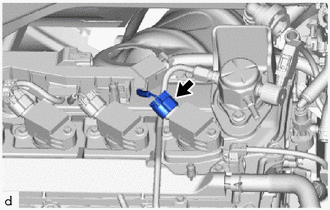

    1. Disconnect the ignition coil assembly connector.
      GTY818264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

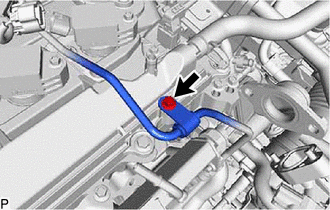

    2. Remove the bolt and disconnect the No. 1 fuel pipe sub-assembly from the cylinder head sub-assembly.
      GTY786151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

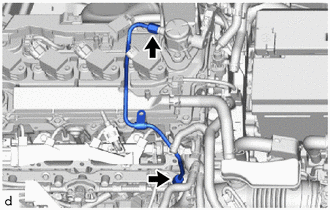

    3. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.
      GTY818270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Loosen the 2 bolts of the fuel pump assembly.
      GTY818269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the No. 1 fuel pipe sub-assembly from the fuel delivery pipe and fuel pump assembly.
  8. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY
    NOTE:

    When replacing the fuel pump assembly, it is necessary to replace the No. 1 fuel pipe sub-assembly with a new one.

    1. Disconnect the fuel pump assembly connector.
      GTY818268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, fuel pump assembly and fuel pump flange from the cylinder head cover sub-assembly.
      GTY836750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the fuel pump assembly.
      GTY754529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the fuel pump lifter assembly from the fuel pump lifter guide.
      GTY818274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the fuel pump spacer gasket from the cylinder head cover sub-assembly.
      GTY818273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
