Installation [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

SET EGR VALVE ASSEMBLY
HINT:

Perform "Inspection After Repair" after replacing the EGR valve assembly.

Refer to INITIALIZATION [10/2018 - 08/2021] , or refer to INITIALIZATION [08/2021 - ]
1. Set the EGR valve assembly to the camshaft housing.
  HINT:

  At this time, do not install the parts with bolts.
2. Connect the No. 8 water by-pass hose to the EGR valve assembly and slide the clip to secure it.
3. Install the No. 4 water by-pass hose to the EGR valve assembly and slide the clip to secure it.
INSTALL EGR COOLER ASSEMBLY
See step 1

INSTALL EGR VALVE ASSEMBLY

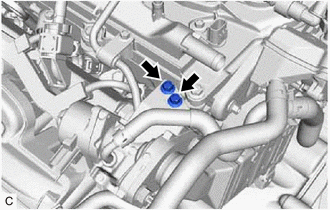

Using the 8 mm socket wrench, install the EGR valve assembly with the 2 bolts.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

INSTALL NO. 1 EGR PIPE SUB-ASSEMBLY
1. Install a new EGR inlet gasket to the intake manifold.
2. Install a new EGR valve adapter gasket to the No. 1 EGR pipe sub-assembly.
3. Using an 8 mm socket wrench, install the No. 1 EGR pipe sub-assembly to the intake manifold and EGR valve assembly with the 4 bolts.
  Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
ADD ENGINE COOLANT
Refer to PROCEDURE - Step 3 [10/2018 - 10/2019] , or refer to PROCEDURE - Step 3 [10/2019 - ]
INSPECT FOR COOLANT LEAK
Refer to PROCEDURE - Step 1 [10/2018 - 10/2019] , or refer to PROCEDURE - Step 1 [10/2019 - ]
INSPECT FOR EXHAUST GAS LEAK
Refer to PROCEDURE - Step 7
