Reassembly [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 2 OIL NOZZLE SUB-ASSEMBLY

Using a 5 mm hexagon wrench, install the 4 No. 2 oil nozzle sub-assemblies to the cylinder block sub-assembly with the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

INSTALL NO. 1 OIL NOZZLE SUB-ASSEMBLY

Using a 5 mm hexagon wrench, install the 4 No. 1 oil nozzle sub-assemblies to the cylinder block sub-assembly with the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

INSTALL PISTON

HINT:

Perform inspection after repair after replacing the piston.

Refer to INITIALIZATION [10/2018 - 08/2021] , or refer to INITIALIZATION [08/2021 - ]

Using a screwdriver, install a new piston pin hole snap ring to the piston pin hole on the rear side of the piston.
NOTE:
Be sure that the end gap of the piston pin hole snap ring is not aligned with the cutout of the piston.

HINT:

Tape the screwdriver tip before use.
Gradually heat the piston to between 80 and 90°C (176 and 194°F).
WARNING:
Be sure to wear protective gloves.
Apply a light coat of engine oil to the piston, piston pin and connecting rod.

Align the cutout of the piston and front mark of the connecting rod, insert the connecting rod into the piston, and then push in the piston pin with your thumb until the piston pin comes into contact with the piston pin hole snap ring.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Cutout
*b	Front Mark

NOTE:

Do not change the combination of the pistons and piston pins.

Using a screwdriver, install a new piston pin hole snap ring to the piston pin hole on the front side of the piston.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Piston Pin Hole Snap Ring
*a	Cutout
*b	Protective Tape

NOTE:

Be sure that the end gap of the piston pin hole snap ring is not aligned with the cutout of the piston.

HINT:

Tape the screwdriver tip before use.

Check the fitting condition between the piston and piston pin.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Move the connecting rod back and forth on the piston pin. Check the fitting condition.
HINT:

If abnormal movement is felt, replace the piston and piston pin as a set.
Rotate the piston back and forth on the piston pin. Check the fitting condition.
HINT:

If abnormal movement is felt, replace the piston and piston pin as a set.

INSTALL PISTON RING SET

HINT:

Perform inspection after repair after replacing the piston and piston ring.

Refer to INITIALIZATION [10/2018 - 08/2021] , or refer to INITIALIZATION [08/2021 - ]

Install the oil ring expander by hand.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Upper Side Rail
*2	Oil Ring Expander
*3	Lower Side Rail

Install upper side rail and lower side rail to the piston.

NOTE:

Install the upper side rail and lower side rail with the code mark (T) facing upward.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Upper Side Rail
*2	Lower Side Rail
*a	Code Mark (T)

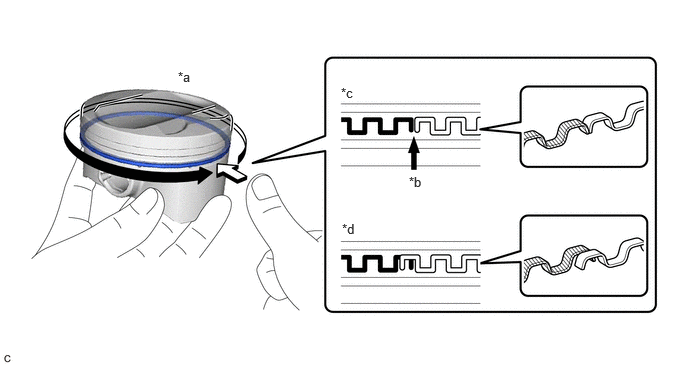

Check that the ends of the oil ring expander are not overlapping and that the upper side rail and lower side rail are securely installed into the groove.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Press around the circumference	*b	Ring End
*c	Correct	*d	Incorrect (Ends of the oil ring expander are overlapping)

NOTE:

After installing the oil ring expander, upper side rail and lower side rail, press around the circumference with a finger to check that they are securely installed into the groove.
If the oil ring expander is not securely installed into the groove, check that the ends of the oil ring expander are not overlapping.
If the ends of the oil ring expander are overlapping, remove the upper side rail and lower side rail and realign the oil ring expander.

Using a piston ring expander, install the No. 1 compression ring and No. 2 compression ring with the code mark positioned as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 1 Compression Ring
*2	No. 2 Compression Ring
*a	Code Mark
*b	Paint Mark
	Upward

Piston Ring Mark

Item	Code Mark	Paint Mark
No. 1 Compression Ring	-	White
No. 2 Compression Ring	2T	Sky Blue

NOTE:

Install the compression rings with the code marks facing upward.

Position the piston rings so that the ring ends are as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 1 Compression Ring
*2	No. 2 Compression Ring
*3	Oil Ring Expander
*4	Upper Side Rail
*5	Lower Side Rail
*a	Front Mark
	Front of Engine

INSTALL CRANKSHAFT BEARING

Clean the main journal and both surfaces of the No. 1 crankshaft bearings and No. 2 crankshaft bearings.

Install the 5 No. 1 crankshaft bearings to the cylinder block sub-assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Correct
*b	Incorrect

NOTE:

Do not apply engine oil to the No. 1 crankshaft bearings or the contact surfaces.

HINT:

Both sides of the oil groove in the cylinder block sub-assembly should be visible through the oil feed holes in the No. 1 crankshaft bearing. The amount visible on each side of the holes should be equal.

Using a vernier caliper, measure the distance between the cylinder block sub-assembly edge and the upper No. 1 crankshaft bearing edge.

Difference between (A) and (B)

0 to 0.7 mm (0 to 0.0276 in.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Vernier Caliper

Install the 5 No. 2 crankshaft bearings to the 5 crankshaft bearing caps.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Vernier Caliper

Using a vernier caliper, measure the distance between the crankshaft bearing cap edge and No. 2 crankshaft bearing edge.
Difference between (A) and (B)

0 to 0.7 mm (0 to 0.0276 in.)

NOTE:
Do not apply engine oil to the No. 2 crankshaft bearings or the contact surfaces.

INSTALL CRANKSHAFT THRUST WASHER

Install the 2 crankshaft thrust washers to the No. 3 journal position of the cylinder block sub-assembly with the oil grooves facing outward.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Oil Groove

Apply engine oil to the crankshaft thrust washers.

INSTALL CRANKSHAFT

Apply engine oil to the No. 1 crankshaft bearings, and place the crankshaft on the cylinder block sub-assembly.
Apply engine oil to the No. 2 crankshaft bearings.

Confirm the front marks and numbers, and install the 5 crankshaft bearing caps to the cylinder block sub-assembly with the front marks positioned as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front Mark

Apply a light coat of engine oil to the threads and under the heads of the crankshaft bearing cap set bolts.
Using a plastic hammer, lightly tap the crankshaft bearing caps to ensure a proper fit.
Install the crankshaft bearing cap set bolts.
NOTE:
The crankshaft bearing cap set bolts are tightened in 2 progressive steps.
Step 1:
1. Uniformly install and tighten the 10 crankshaft bearing cap set bolts in several steps in the order shown in the illustration.

  Fig 1: Crankshaft Bearing Cap Set Bolt Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 61 N.m (622 kgf/cm, 45 ft.lbf)

  HINT:

  If a crankshaft bearing cap set bolt cannot be tightened to the specified torque, replace it.

Step 2:

Mark the front of the crankshaft bearing cap set bolts with paint.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Paint Mark
*b	90°
	Front of Engine

Tighten the 10 crankshaft bearing cap set bolts 90° as shown in the illustration.
Check that the paint marks are now at a 90° angle to the front.

Check that the crankshaft turns smoothly.

INSTALL CONNECTING ROD BEARING

Clean the connecting rod bearing contact surfaces of the connecting rod and connecting rod cap, and both surfaces of the 2 connecting rod bearings.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Vernier Caliper

Install the 8 connecting rod bearings to the 4 connecting rods and 4 connecting rod caps.
Using a vernier caliper, measure the distance between the edges of the connecting rod and connecting rod bearing, and the edges of the connecting rod cap and connecting rod bearing.
Difference between (A) and (B)

0 to 0.7 mm (0 to 0.0276 in.)

NOTE:
Do not apply engine oil to the connecting rod bearings or the contact surfaces.

INSTALL PISTON WITH CONNECTING ROD

Apply engine oil to the cylinder walls, pistons, and surfaces of the connecting rod bearings.

Position the piston rings so that the ring ends are as shown in the illustration.

*1	No. 1 Compression Ring
*2	No. 2 Compression Ring
*3	Oil Ring Expander
*4	Upper Side Rail
*5	Lower Side Rail
*a	Front Mark
	Front of Engine

Confirm that the ends of the oil ring expander are not overlapping and that the upper side rail and lower side rail are securely installed into the groove.

*a	Press around the circumference	*b	Ring End
*c	Correct	*d	Incorrect (Ends of the oil ring expander are overlapping)

NOTE:

After installing the oil ring expander, upper side rail and lower side rail, press around the circumference with a finger to check that they are securely installed into the groove.
If the oil ring expander is not securely installed into the groove, check that the ends of the oil ring expander are not overlapping.
If the ends of the oil ring expander are overlapping, remove the upper side rail and lower side rail and realign the oil ring expander.

Using a piston ring compressor, push the correctly numbered piston with connecting rod into the cylinder with the front marks of each piston with connecting rod facing the front of the engine.

*a	Front Mark

NOTE:

When inserting the piston with connecting rod into the cylinder block sub-assembly, make sure the connecting rod does not contact the No. 1 oil nozzle sub-assembly.
Match each connecting rod cap to the correct connecting rod.

Check that the front mark of the connecting rod cap is facing the correct direction.

*a	Front Mark

Apply a light coat of engine oil to the threads and under the heads of the connecting rod bolts.
Install the 8 connecting rod bolts.
NOTE:
The connecting rod bolts are tightened in 2 progressive steps.

Step 1:

Using an E12 "TORX" socket wrench, alternately tighten the 2 connecting rod bolts in several steps.

Torque: 38 N.m (387 kgf/cm, 28 ft.lbf)

Step 2:

Fig 2: Tighten Connecting Rod Cap Bolts Alternately Using Paint Marks And Degrees (Step Two)

*a	Paint Mark
*b	90°
	Front of Engine

Mark the front of the connecting rod bolts with paint.
Tighten the connecting rod bolts 90° as shown in the illustration.
Check that the paint marks are now at a 90° angle to the front.

Check that the crankshaft turns smoothly.
Check the connecting rod thrust clearance.
See step 7

INSTALL CYLINDER BLOCK WITH HEAD STRAIGHT SCREW PLUG

Using a 10 mm hexagon wrench, install the cylinder block with head straight screw plug and a new gasket to the cylinder block sub-assembly.

Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

INSTALL NO. 1 VENTILATION CASE

NOTE:

Perform this procedure only when replacement of the No. 1 ventilation case is necessary.

Install 3 new oil separator gaskets to the No. 1 ventilation case.

Install the No. 1 ventilation case to the cylinder block sub-assembly with the 4 bolts.

Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)
