Installation [10/2018 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL NO. 1 ECM BRACKET
- Engage the 2 guides to install the No. 1 ECM bracket to the ECM.
- Install the 2 screws.
Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)
- INSTALL NO. 2 ECM BRACKET
- Engage the 2 guides to install the No. 2 ECM bracket to the ECM.
- Install the 2 screws.
Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)
- INSTALL ECM
- Install the ECM with the bolt and nut.
Bolt
Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)
Nut
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
NOTE:If the ECM has been struck or dropped, replace it.

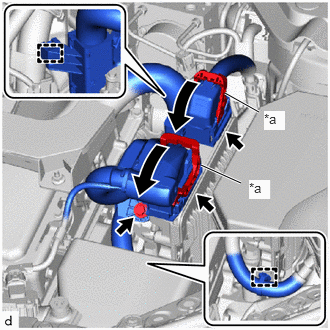

- Connect the 2 ECM connectors and lower the 2 lock levers.NOTE:
- When connecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.
- Be sure to securely connect the ECM connectors.
*a Lock lever - Install the engine wire to the ECM bracket with the 2 clamps and bolt.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Install the ECM with the bolt and nut.
- CONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to INSTALLATION [10/2018 - ]
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2018 - 07/2022] Refer to INITIALIZATION [07/2022 - ]
- PERFORM INITIALIZATION
Refer to INITIALIZATION [10/2018 - 08/2021] Refer to INITIALIZATION [08/2021 - ]
