DTC P0A81-96: Hybrid/EV Battery Cooling Fan 1 Component Internal Failure; DTC P0A8198: Hybrid/EV Battery Cooling Fan 1 Component or System Over Temperature [10/2018 - ]: Procedure
- CHECK DTC OUTPUT (HYBRID CONTROL)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
- Check for DTCs.
Powertrain > Hybrid Control > Trouble Codes
Result
Result Proceed to "P0AFC00 or P0AFC96" is not output. A "P0AFC00 or P0AFC96" is also output. B - Turn the power switch off.
Result:
B
GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2018 - ]
Result:
A
See step 2
- CHECK DUCT AND BLOWER WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Remove the bench type rear seat cushion assembly.
Refer to PROCEDURE - Step 6 Refer to PROCEDURE - Step 5

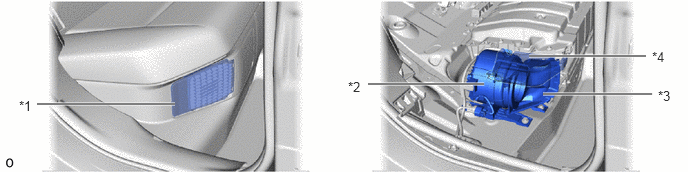

- Check that the No. 1 HV battery intake filter, battery cooling blower assembly, No. 1 hybrid battery intake duct and No. 1 hybrid battery intake duct LH are not disconnected, damaged, or clogged with foreign matter.
*1 No. 1 HV Battery Intake Filter *2 Battery Cooling Blower Assembly *3 No. 1 Hybrid Battery Intake duct *4 No. 1 Hybrid Battery Intake Duct LH OK
The No. 1 HV battery intake filter, No. 1 hybrid battery intake duct, No. 1 hybrid battery intake duct LH and battery cooling blower assembly blower are not disconnected, damaged, or clogged with foreign matter.
- Install the bench type rear seat cushion assembly.
Result
Proceed to OK NG
Result:
NG
CORRECT THE PROBLEM
Result:
OK
See step 3
- Check that the service plug grip is not installed.
- CHECK HARNESS AND CONNECTOR (BATTERY VOLTAGE SENSOR - BATTERY COOLING BLOWER ASSEMBLY)
See step 3
Result
Proceed to OK NG Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - BATTERY COOLING BLOWER ASSEMBLY)
See step 9
Result
Proceed to OK NG Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 5
- CHECK HYBRID VEHICLE CONTROL ECU (GROUND SHORT CHECK)
- Remove the hybrid vehicle control ECU.
Refer to REMOVAL [10/2018 - 07/2022] Refer to REMOVAL [07/2022 - ]
- Measure the resistance according to the value(s) in the table below.

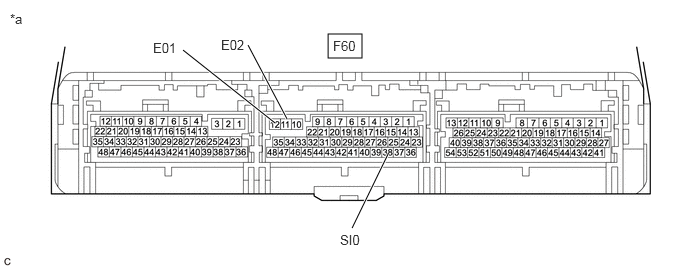

*a Component without harness connected
(Hybrid Vehicle Control ECU)- - Standard Resistance
Tester Connection Switch Condition Specified Condition F60-38 (SI0) - F60-12 (E01) Power switch off 10 kΩ or higher F60-38 (SI0) - F60-11 (E02) Power switch off 10 kΩ or higher - Install the hybrid vehicle control ECU.
Result
Proceed to OK NG
Result:
NG
REPLACE HYBRID VEHICLE CONTROL ECU. Refer to REMOVAL [10/2018 - 07/2022] Refer to REMOVAL [07/2022 - ]
Result:
OK
See step 6
- Remove the hybrid vehicle control ECU.
- READ VALUE USING TECHSTREAM (COOLING FAN FREQUENCY)
See step 4
Result
Result Proceed to Both of the value in the Data List (Hybrid Battery Cooling Fan 1 Frequency) and the actual measured value at the battery voltage sensor connector are 0 Hz. A Other than above B Result:
B
See step 8
Result:
A
See step 7
- CHECK BATTERY VOLTAGE SENSOR
See step 5
Result
Proceed to OK NG Result:
OK
REPLACE BATTERY COOLING BLOWER ASSEMBLY. Refer to REMOVAL [10/2018 - ]
Result:
NG
REPLACE BATTERY VOLTAGE SENSOR. Refer to REMOVAL [10/2018 - 07/2022] Refer to REMOVAL [07/2022 - ]
- CHECK BATTERY VOLTAGE SENSOR (FREQUENCY)
See step 6
Result
Proceed to OK NG Result:
OK
REPLACE BATTERY COOLING BLOWER ASSEMBLY. Refer to REMOVAL [10/2018 - ]
Result:
NG
REPLACE BATTERY VOLTAGE SENSOR. Refer to REMOVAL [10/2018 - 07/2022] Refer to REMOVAL [07/2022 - ]
