Parts Location [10/2018 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

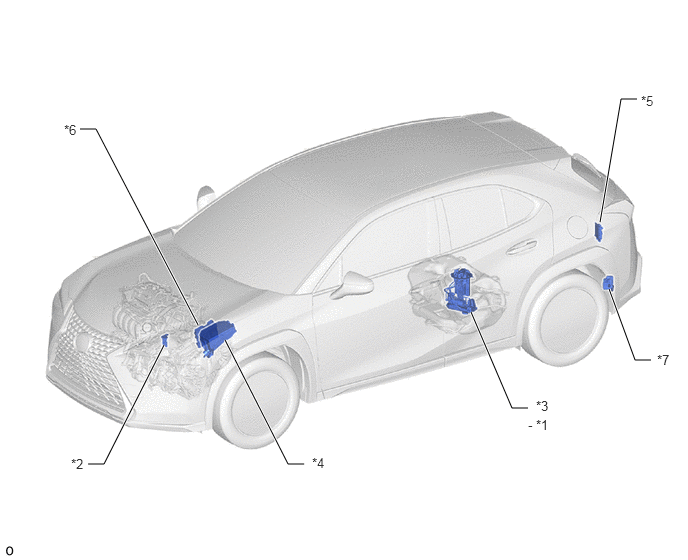

| *1 |
FUEL PUMP (for Low Pressure Side) |
*2 |
MASS AIR FLOW METER SUB-ASSEMBLY |
| *3 |
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
*4 |
NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY |
| *5 |
FUEL PUMP CONTROL ECU |
*6 |
ECM |
| *7 |
CANISTER PUMP MODULE |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

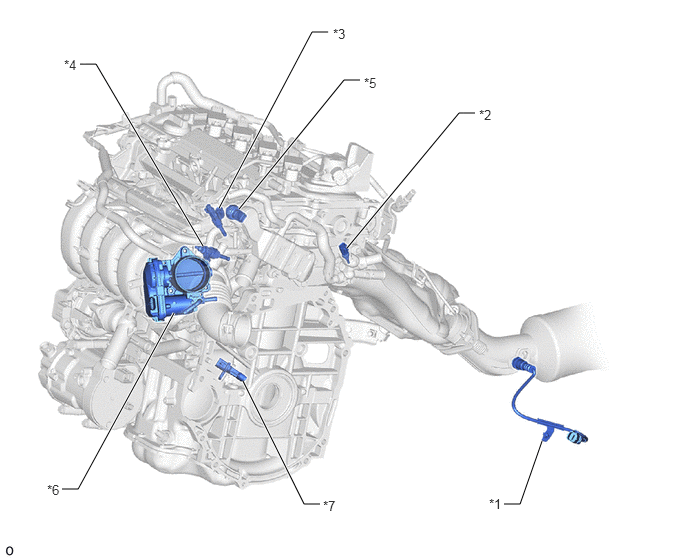

| *1 |
AIR FUEL RATIO SENSOR (Sensor 2) |
*2 |
ENGINE COOLANT TEMPERATURE SENSOR |
| *3 |
PORT FUEL INJECTOR ASSEMBLY |
*4 |
DIRECT FUEL INJECTOR ASSEMBLY |
| *5 |
FUEL PRESSURE SENSOR (for Low Pressure Side) |
*6 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
| *7 |
CRANKSHAFT POSITION SENSOR |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

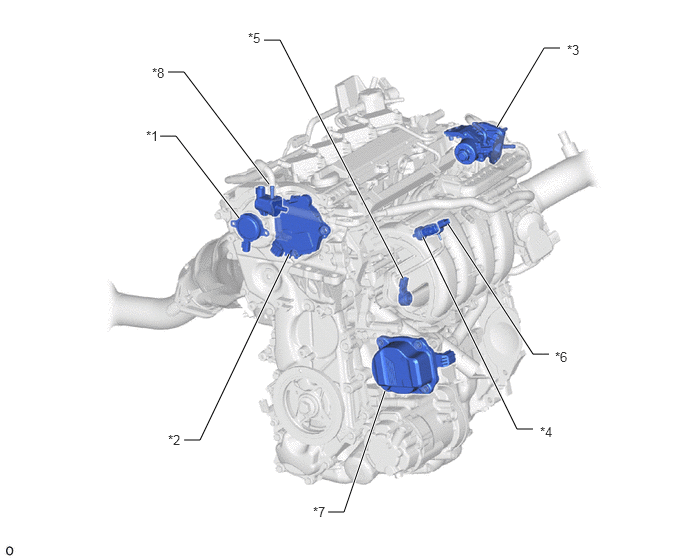

| *1 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*2 |
CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 |
EGR VALVE ASSEMBLY |
*4 |
FUEL PRESSURE SENSOR (for High Pressure Side) |
| *5 |
KNOCK CONTROL SENSOR |
*6 |
MANIFOLD ABSOLUTE PRESSURE SENSOR |
| *7 |
WATER INLET HOUSING WITH WATER PUMP SUB-ASSEMBLY |
*8 |
VACUUM SWITCHING VALVE (PURGE VSV) |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

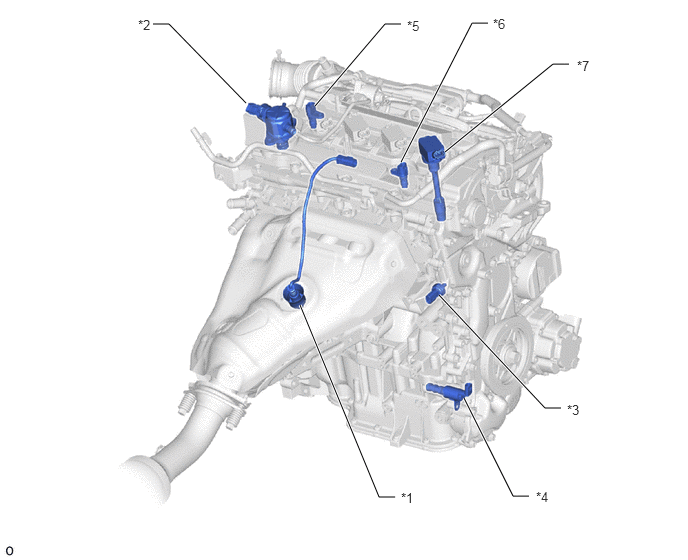

| *1 |
AIR FUEL RATIO SENSOR (Sensor 1) |
*2 |
FUEL PUMP ASSEMBLY (for High Pressure Side) |
| *3 |
ENGINE OIL PRESSURE AND TEMPERATURE SENSOR |
*4 |
OIL PRESSURE CONTROL VALVE ASSEMBLY |
| *5 |
CAMSHAFT POSITION SENSOR (for Intake Camshaft) |
*6 |
CAMSHAFT POSITION SENSOR (for Exhaust Camshaft) |
| *7 |
IGNITION COIL ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

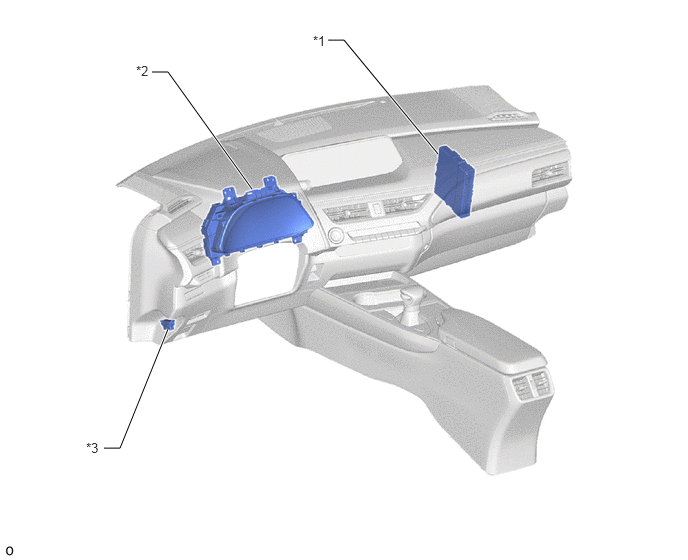

| *1 |
HYBRID VEHICLE CONTROL ECU ASSEMBLY |
*2 |
COMBINATION METER ASSEMBLY |
| *3 |
DLC3 |
- |
- |
