Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to REMOVAL [10/2018 - 07/2022]

  2. REMOVE NO. 1 SPEAKER MOUNTING BRACKET (w/ Woofer)

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX (w/ Woofer)

    Refer to PROCEDURE - Step 3

  4. REMOVE FUEL FILLER OPENING LID LOCK COVER (for HV Model)

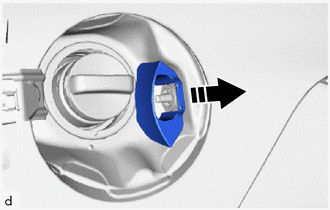

    1. Remove the fuel filler opening lid lock cover as shown in the illustration.
      GTY775882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE FUEL FILLER OPENING LID LOCK RETAINER (for Gasoline Model)

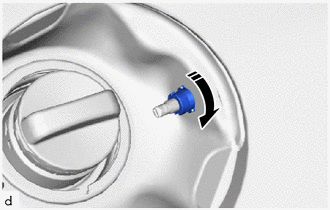

    1. Remove the fuel filler opening lid lock retainer as shown in the illustration.
      GTY794074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  6. REMOVE FUEL FILLER OPENING LID LOCK RETAINER (for HV Model)

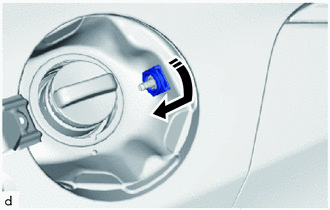

    1. Remove the fuel filler opening lid lock retainer as shown in the illustration.
      GTY809104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  7. REMOVE FUEL LID WITH MOTOR LOCK ASSEMBLY

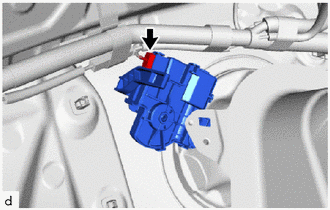

    1. Disconnect the connector to remove the fuel lid with motor lock assembly.
      GTY835589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
