Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to REMOVAL [10/2018 - 10/2020] , or refer to REMOVAL [10/2020 - 07/2022]

  2. REMOVE NO. 1 SPEAKER MOUNTING BRACKET
    1. Remove the nut.

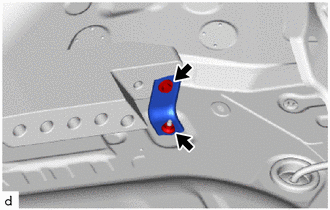

      GTY803897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and No. 1 speaker mounting bracket.
  3. REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX
    NOTE:

    Do not touch the cone part of the speaker.

    1. Disconnect the connector.

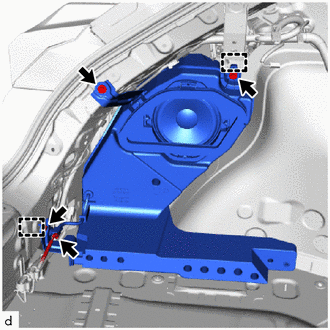

      GTY803909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts.
    3. Disengage the hooks to remove the No. 1 speaker assembly with box.
