Replacement [10/2015 - ]: Procedure

Refer to PROCEDURE - Step 2 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 2 [08/2016 - 03/2018] , or refer to PROCEDURE - Step 2 [03/2018 - 08/2018] , or refer to PROCEDURE - Step 2 [08/2018 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - ]

Refer to PROCEDURE - Step 1 [10/2015 - ]

1. Disconnect the No. 2 parking brake wire assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and separate the No. 2 parking brake wire assembly from the rear axle carrier sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Remove the 2 bolts and separate the rear disc brake caliper assembly from the rear axle carrier sub-assembly.
   NOTE:

   Use wire or an equivalent tool to keep the rear disc brake caliper assembly from hanging by the rear flexible hose.

Refer to PROCEDURE - Step 16 [10/2015 - ]

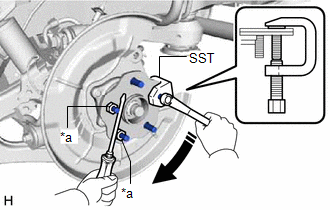

1. Temporarily install 2 service nuts to the rear axle hub bolts as shown in the illustration.

   Recommended Service Nut

   Thread diameter: 12.0 mm (0.472 in.)

   Thread pitch: 1.5 mm (0.0591 in.)

   NOTE:

   Install the service nuts to prevent damage to the rear axle hub bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Service Nut

2. Using SST and a screwdriver or an equivalent tool to hold the rear axle hub and bearing assembly, remove the rear axle hub bolt.
   • SST: 09628-10011
   NOTE:

   Do not damage the threads of the rear axle hub bolts.

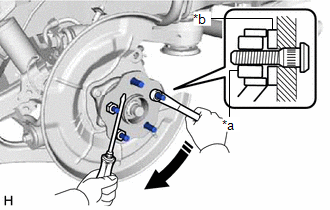

1. Temporarily install a new rear axle hub bolt to the rear axle hub and bearing assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Service Nut
   *b	Washer

2. Install a washer and service nut to the rear axle hub bolt as shown in the illustration.

   Recommended Service Nut

   Thread diameter: 12.0 mm (0.472 in.)

   Thread pitch: 1.5 mm (0.0591 in.)

   HINT:

   Recommended washer thickness is 5 mm (0.197 in.) or more.

3. Using a screwdriver or an equivalent tool to hold the rear axle hub and bearing assembly, install the rear axle hub bolt by tightening the service nut.
   NOTE:

   • Install the service nuts to prevent damage to the rear axle hub bolts.
   • Do not damage the threads of the rear axle hub bolts.
4. Remove the 3 service nuts and washer from the 3 rear axle hub bolts.

Refer to PROCEDURE - Step 1 [10/2015 - ]

1. Install the rear disc brake caliper assembly to the rear axle carrier sub-assembly with the 2 bolts.

   Torque: 150 N*m (1530 kgf*cm, 111 ft.*lbf)

2. Install the No. 2 parking brake wire assembly to the rear axle carrier sub-assembly with the bolt.

   Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

3. Connect the No. 2 parking brake wire assembly connector.

Refer to PROCEDURE - Step 1 [10/2015 - ]

1. With the power switch off, connect the 2 brake booster pump connectors.
2. Clear the DTCs.

   Refer to DTC CHECK / CLEAR [10/2015 - 08/2018] , or refer to DTC CHECK / CLEAR [08/2018 - 08/2019] , or refer to DTC CHECK / CLEAR [08/2019 - ]
