Replacement [03/2018 - 08/2019]: Procedure

DISCONNECT FRONT FENDER MOLDING SUB-ASSEMBLY (for TMMC Made)
Refer to PROCEDURE - Step 2

REMOVE FRONT TURN SIGNAL LIGHT BULB

Turn the steering wheel fully to the right.
HINT:

When removing the fog light assembly RH, turn the steering wheel to the left.

except TMMC Made:

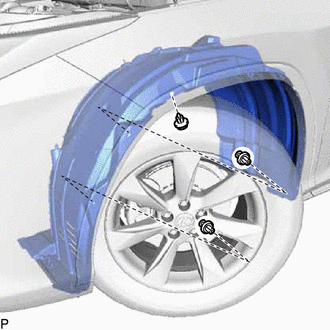

Remove the 3 clips and separate the front fender splash shield sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for TMMC Made:

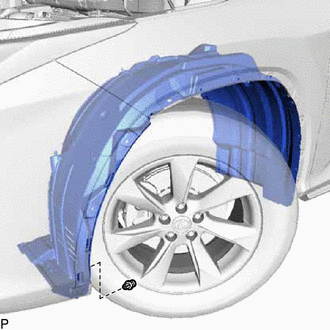

Remove the clip and separate the front fender splash shield sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

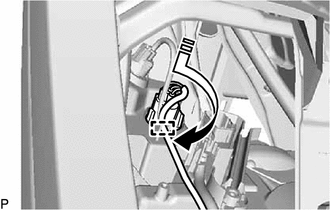

Turn the headlight cord with the front turn signal light bulb as shown in the illustration to disconnect them as a unit.
Remove the front turn signal light bulb from the headlight cord.

INSTALL FRONT TURN SIGNAL LIGHT BULB

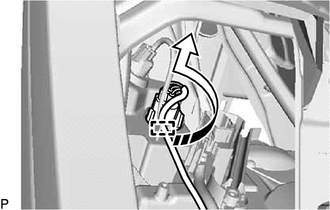

Turn the headlight cord with the front turn signal light bulb as shown in the illustration to connect them as a unit.

Install in this Direction

Engage the clamp.
except TMMC Made:
1. Install the front fender splash shield sub-assembly with the 3 clips.
for TMMC Made:
1. Install the front fender splash shield sub-assembly with the clip.
Turn the steering wheel to its original position.

CONNECT FRONT FENDER MOLDING SUB-ASSEMBLY (for TMMC Made)
Refer to PROCEDURE - Step 2
