Removal [08/2016 - 08/2019]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

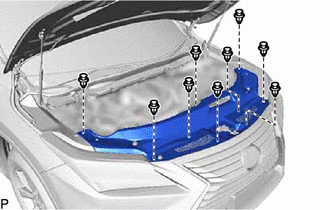

    1. Remove the 9 clips and cool air intake duct seal.
      GTY672250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT FRONT FENDER MOULDING SUB-ASSEMBLY LH
    1. Remove the 2 clips.
      GTY685679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

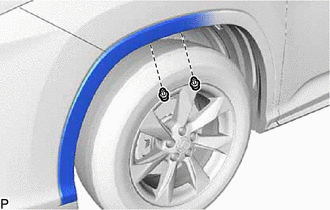

    2. Remove the 2 clips.
      GTY672249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull back the edge of the front fender splash shield sub-assembly LH and disengage the 5 claws by pushing the area indicated by the arrow in the illustration with a finger.
      GTY612596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Fender Splash Shield Sub-assembly LH
      Place Hand Here
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:
      • Do not apply excessive force when pulling back the front fender splash shield sub-assembly LH.
      • To avoid damaging the claws, do not forcibly pull the front fender moulding sub-assembly LH.
    4. Disengage the 2 clips and disconnect the front fender moulding sub-assembly LH.
  3. DISCONNECT FRONT FENDER MOULDING SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE FRONT BUMPER ASSEMBLY

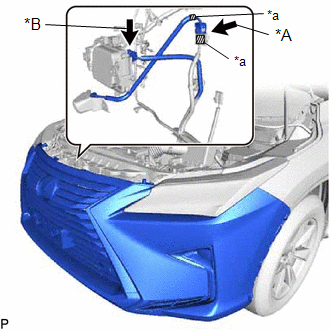

    1. w/ Panoramic View Monitor System:
      GTY615847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Panoramic View Monitor System
      *B w/ Pre-collision System
      *a Tape
      1. Apply tape to the 2 wire harnesses as shown in the illustration.

        HINT:

        Tape is used to identify the wire harnesses which are connected to the front television camera assembly.

    2. Disconnect each connector.
    3. Apply protective tape around the front bumper assembly.
      GTY637574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Use the same procedure for the RH side and LH side.

    4. Remove each clip.
      GTY952776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for TMMC Made

      HINT:

      Use the same procedure for the RH side and LH side.

    5. Remove the 8 screws.
      GTY672245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

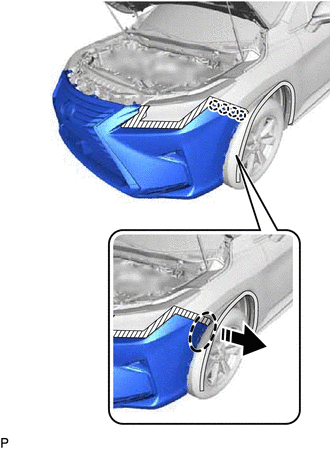

    6. Disengage the 4 claws as shown in the illustration.
      GTY622567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

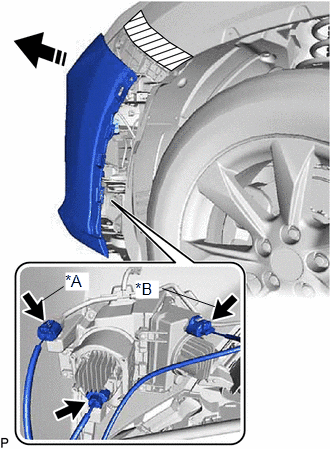

    7. Pull back the side of the front bumper assembly, disconnect each connector.
      GTY673491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Intuitive Parking Assist System
      *B w/ Cornering Light
      Remove in this Direction
      NOTE:

      Do not apply excessive force when pulling back the front bumper assembly.

      HINT:

      Use the same procedure for the RH side and LH side.

    8. w/ Headlight Cleaner System:

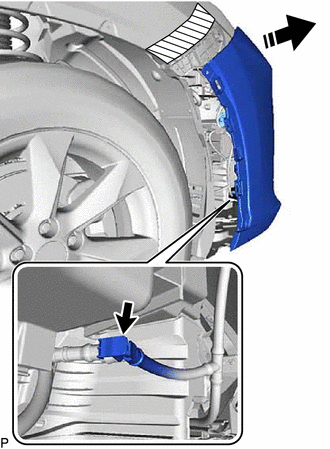

      1. Pull back the side of the front bumper assembly and disconnect the headlight cleaner hose.
        GTY639397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
      2. Drain the washer fluid.
        GTY672241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Use a container to collect the washer fluid.

    9. Remove the 4 bolts.
      GTY672240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Remove the 2 clips and front bumper assembly as shown in the illustration.
      GTY680360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
