Removal [12/2017 - ]: Procedure

  1. REMOVE BACK WINDOW UPPER PANEL TRIM (w/o Rear No. 2 Seat)

    See step  1, or see step  1

  2. REMOVE BACK WINDOW UPPER PANEL TRIM (w/ Rear No. 2 Seat)

    See step  2, or see step  2

  3. REMOVE BACK DOOR TRIM COVER LH (w/o Rear No. 2 Seat)

    See step  3, or see step  3

  4. REMOVE BACK DOOR TRIM COVER LH (w/ Rear No. 2 Seat)

    See step  4, or see step  4

  5. REMOVE BACK DOOR TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE BACK DOOR LOCK COVER (w/o Rear No. 2 Seat)

    See step  6, or see step  6

  7. REMOVE BACK DOOR LOCK COVER (w/ Rear No. 2 Seat)

    See step  7, or see step  7

  8. REMOVE BACK DOOR TRIM BASE

    See step  8, or see step  8

  9. REMOVE DOOR PULL HANDLE

    See step  9, or see step  9

  10. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 3 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]

  11. REMOVE BACK DOOR TRIM PANEL ASSEMBLY (w/o Rear No. 2 Seat)

    See step  11, or see step  11

  12. REMOVE BACK DOOR TRIM PANEL ASSEMBLY (w/ Rear No. 2 Seat)

    See step  12, or see step  12

  13. REMOVE POWER BACK DOOR WARNING BUZZER

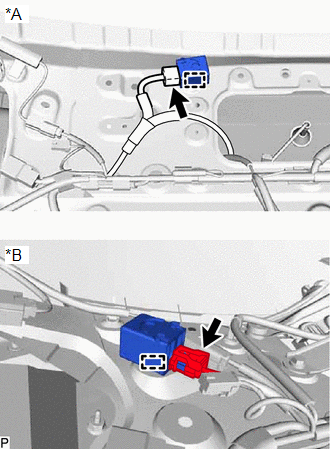

    1. Disconnect the connector.
      GTY830541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Rear No. 2 Seat
      *B w/ Rear No. 2 Seat
    2. Disengage the clamp to remove the power back door warning buzzer.
