Removal [08/2019 - ]: Procedure

  1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)
    1. w/o Rear No. 2 Seat:
      1. Using a moulding remover, disengage the claw.

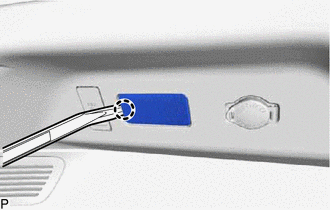

        GTY962116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Rear No. 2 Seat:
      1. Using a moulding remover, disengage the claw.

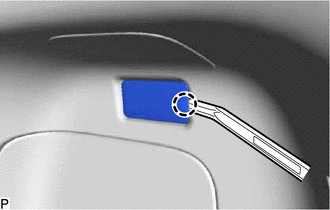

        GTY805662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector to remove the No. 1 luggage compartment light assembly.
  2. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)
    1. Using a moulding remover, disengage the claw.

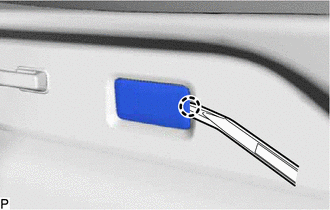

      GTY805854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 1 luggage compartment light assembly.
  3. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for Back Door)
    1. Using a moulding remover, disengage the claw.

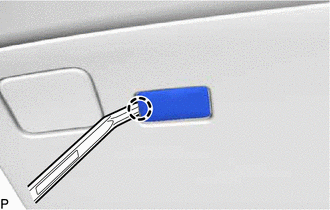

      GTY833999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 1 luggage compartment light assembly.
