Removal [09/2015 - 08/2016]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR NO. 4 FLOOR BOARD

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT DECK FLOOR BOX

    Refer to PROCEDURE - Step 6

  7. REMOVE DECK SIDE TRIM BOX RH

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 8

  9. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 11

  10. REMOVE REAR SEAT ASSEMBLY LH

    Refer to REMOVAL [09/2015 - 08/2016]

  11. REMOVE UPPER QUARTER TRIM PAD LH

    Refer to PROCEDURE - Step 23

  12. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 24

  13. REMOVE REAR FLOOR FINISH SIDE PLATE LH

    Refer to PROCEDURE - Step 25

  14. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 26

  15. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 27

  16. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  17. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 29

  18. REMOVE FUEL PUMP CONTROL ECU ASSEMBLY

    Refer to PROCEDURE - Step 5

  19. REMOVE NO. 2 DECK BOARD REINFORCEMENT
    1. Remove the 2 bolts, nut and No. 2 deck board reinforcement.
      GTY645910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR NO. 1 SPEAKER BRACKET

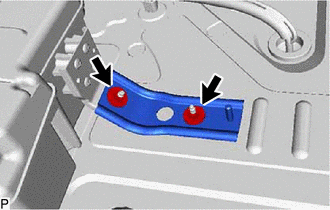

    1. Remove the 2 nuts and rear No. 1 speaker bracket.
      GTY645909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE REAR NO. 3 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

    1. Disconnect the connector.
      GTY645904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts and rear No. 3 speaker assembly.
