Removal [09/2015 - ]: Procedure

  1. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 2 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - ]

  2. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 4 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  3. REMOVE REAR NO. 4 FLOOR BOARD

    Refer to PROCEDURE - Step 5 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 5 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 5 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  4. REMOVE FRONT DECK FLOOR BOX

    Refer to PROCEDURE - Step 6 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 6 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 6 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  5. REMOVE FUEL PUMP CONTROL ECU ASSEMBLY

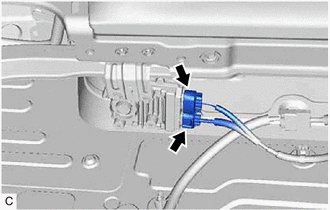

    1. Disconnect the 2 fuel pump control ECU assembly connectors.
      GTY653063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

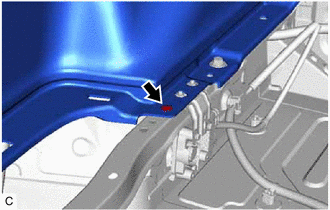

    2. Remove the clip.
      GTY681439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

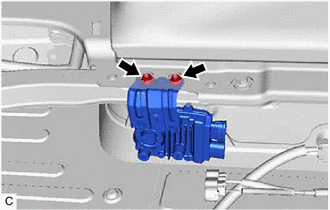

    3. Remove the 2 nuts.
      GTY653072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

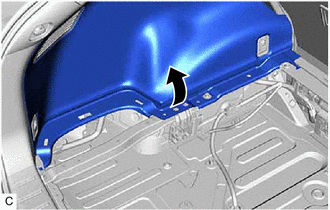

    4. Turn back the deck trim side panel assembly LH and remove the fuel pump control ECU assembly from the vehicle body.
      NOTE:

      Do not reuse the fuel pump control ECU assembly if it has been dropped or subjected to a severe impact.

      GTY638285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
