Removal [10/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2023 - ]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  4. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 24

  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 26

  6. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 27

  7. REMOVE TOOL BOX

    Refer to PROCEDURE - Step 28

  8. REMOVE INNER LOWER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 29

  9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/o Advanced Drive)

    Refer to PROCEDURE - Step 30

  10. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/ Advanced Drive)

    HINT:

    Use the same procedure described for the front luggage compartment trim cover (w/o Advanced Drive).

  11. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  12. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (w/o Advanced Drive)

    Refer to PROCEDURE - Step 33

  13. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (w/ Advanced Drive)

    HINT:

    Use the same procedure described for the rear luggage compartment trim cover (w/o Advanced Drive).

  14. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 10

  15. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 11

  16. REMOVE SIDE TRIM BOX

    Refer to PROCEDURE - Step 16

  17. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH

    Refer to PROCEDURE - Step 17

  18. REMOVE TIRE PRESSURE WARNING ECU AND RECEIVER

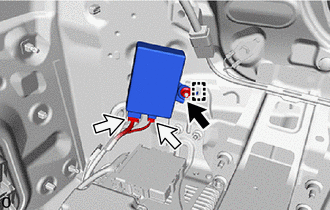

    1. Remove the nut.
      GTY1238618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Connector
    2. Detach the guide and remove the tire pressure warning ECU and receiver.
    3. Disconnect the 2 connectors.
      NOTE:
      • Do not subject the tire pressure warning ECU and receiver to strong impacts or force, and do not drop it.
      • If the removed nut is the same shape as that shown in the illustration, replace it the supplied replacement part.
        GTY833118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
