Removal [10/2017 - 09/2018]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2017 - 09/2019]

  2. AIR SUSPENSION CONTROL PROHIBITED (w/ Air Suspension)

    Refer to PRECAUTION [10/2017 - ]

  3. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2017 - 09/2018]

  5. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  6. SECURE STEERING WHEEL
    1. Secure the steering wheel with the seat belt in order to prevent rotation.
      GTY799644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This operation is useful to prevent damage to the spiral cable.

  7. REMOVE FRONT WHEELS

    Refer to REMOVAL [10/2017 - 10/2023]

  8. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 23

  9. REMOVE TRANSMISSION UNDER COVER

    Refer to PROCEDURE - Step 24

  10. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 25

  11. REMOVE FRONT SUSPENSION MEMBER BRACE

    Refer to PROCEDURE - Step 26

  12. REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27

  13. REMOVE TRANSMISSION OIL COOLER BRACKET

    Refer to REMOVAL [10/2017 - ]

  14. REMOVE FRONT STABILIZER BAR
  15. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Remove the bolt.
      GTY822116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the No. 2 steering intermediate shaft assembly and put matchmarks on the No. 2 steering intermediate shaft assembly and the rack and pinion power steering gear assembly.
      GTY820951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    3. Separate the No. 2 steering intermediate shaft assembly from the rack and pinion power steering gear assembly.
  16. SEPARATE TIE ROD ASSEMBLY LH
    1. Remove the clip and nut.
    2. Install 2 spacers (SST spacer B) to the steering knuckle LH as shown in the illustration.
      GTY796683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Center Nut *b SST (Spacer B)
      *c 1 mm (0.0394 in.) *d Molybdenum grease application area
      *e String *f Place wrench here
      • SST: 09960-20010
        1. 09961-02060
      NOTE:

      Make sure that the clearance between the tie rod assembly LH and spacers (SST spacer B) is 1 mm (0.0394 in.) or more to prevent damage to SST.

    3. Using SST, separate the tie rod assembly LH from steering knuckle LH.
      • SST: 09960-20010
        1. 09961-02010
      WARNING:

      Apply molybdenum grease to the bolt threads and the tip of SST.

      NOTE:
      • Be sure to tighten the string firmly to secure SST to the steering knuckle to prevent SST from falling off.
      • Install SST so that (A) and (B) shown in the illustration are parallel. Otherwise, the ball joint dust cover may be damaged.
      • Be sure to place the wrench on the part shown in the illustration.
      • Do not damage the ball joint dust cover.
      • Do not damage the steering knuckle.
      • Do not damage the front disc brake dust cover.
  17. SEPARATE TIE ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  18. REMOVE RACK AND PINION POWER STEERING GEAR ASSEMBLY

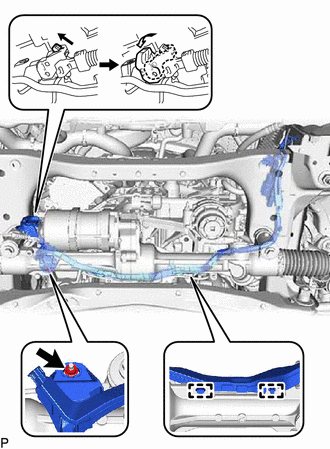

    1. Remove the nut, and disconnect the wire harness clamp and connector, and then disconnect the wire harness from the rack and pinion power steering gear assembly.
      GTY776600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Pull up the lock and release the lock lever to disconnect the connector which uses a lock.

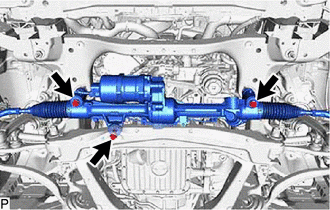

    2. Remove the 3 bolts, nut and rack and pinion power steering gear assembly from the front suspension crossmember sub-assembly.
      GTY776598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
