Removal [10/2017 - 09/2018]: Procedure

Refer to PROCEDURE - Step 24

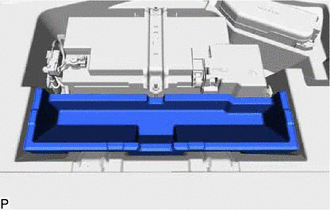

1. Remove the tool box.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

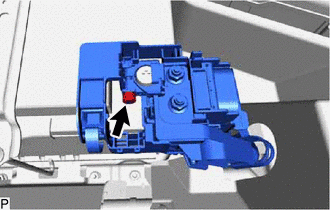

1. Loosen the nut, and disconnect the cable from the negative (-) auxiliary battery terminal.
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Refer to INITIALIZATION [10/2017 - 09/2018]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

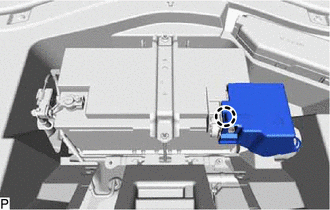

1. Disengage the claw and disconnect the auxiliary battery terminal cap.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

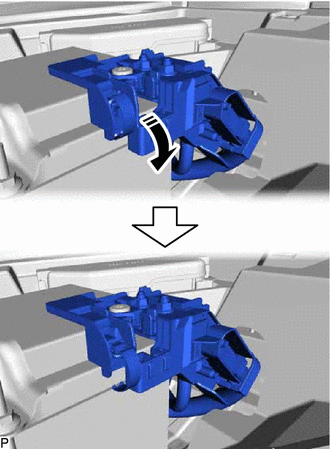

2. Disconnect the clamp spring assembly of the positive (+) auxiliary battery terminal from the auxiliary battery.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Disconnect clamp spring assembly in this direction

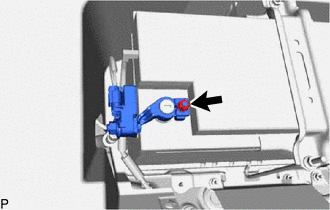

3. Loosen the nut and disconnect the cable from the positive (+) auxiliary battery terminal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

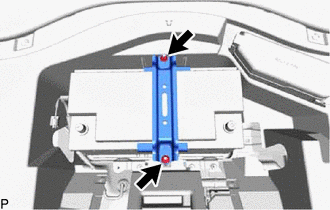

4. Remove the 2 nuts and battery clamp sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

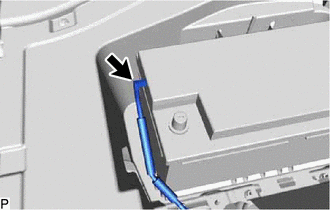

5. Disconnect the battery exhaust hose from the auxiliary battery.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Remove the auxiliary battery.

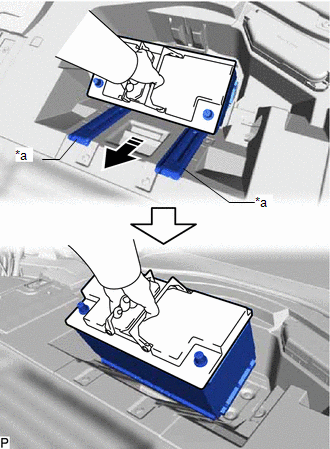

7. Lift up and pull the battery along the slope to remove it as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Auxiliary battery increase direction
   *a	Slope
