Installation [10/2017 - 10/2020]: Procedure

  1. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
    1. Check that the power switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:
      • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
      • If the airbag deploys for any reason, it may cause a serious accident.
      GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. While holding the lower No. 1 instrument panel airbag assembly with one hand, perform the following procedure.

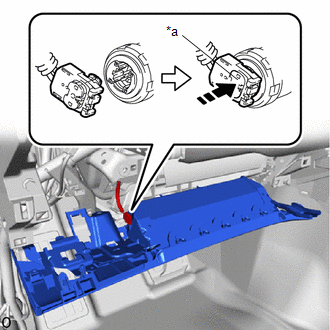

      1. Connect the airbag connector and push the lock button to lock.
        GTY804638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Lock Button
        Push in this Direction
        NOTE:
        • When connecting any airbag connector, take care not to damage the airbag wire harness.
        • Make sure the lock button is securely locked.
      2. Insert it until the hood lock control lever locks.
        GTY825831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Insert until Lock Engages
      3. Attach the claw to connect the DLC3.
      4. Attach the wire harness clamp.

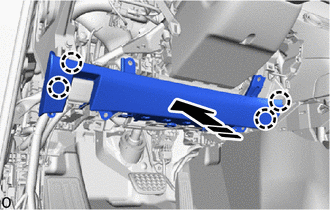

    4. Attach the claw to install the lower No. 1 instrument panel airbag assembly.
      GTY818204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    5. Install the 4 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      GTY793024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Check that there is no looseness in the lower No. 1 instrument panel airbag assembly.
  2. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 6

  3. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32

  4. INSTALL LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30

  5. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 33

  6. INSTALL COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 31

  7. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 40

  8. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]

  9. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  10. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [10/2017 - 10/2020]

  11. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [10/2017 - 10/2020]
