Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus LS 500h, 2023 Lexus LS 500h, and 2022 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR LIDAR ADVANCED DRIVE SENSOR ASSEMBLY
    NOTE:
    • Do not reuse the rear LiDAR advanced drive sensor assembly if it has been dropped or subjected to a severe impact.
    • The rear LiDAR advanced drive sensor assembly is a precision instrument. Take care not to damage it during removal and installation.
    • If the lens surface of the rear LiDAR advanced drive sensor assembly is dirty, install the rear LiDAR advanced drive sensor assembly after cleaning it with a soft cloth or the like while taking care not to damage it.
    1. Temporarily install the rear LiDAR advanced drive sensor assembly with the 3 nuts

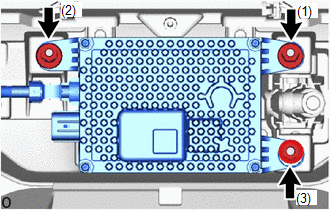

      Fig 1: Rear Lidar Advanced Drive Sensor Assembly Nuts Tightening Sequence
      GTY1085591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the 3 nuts in the order shown in the illustration.

      Torque: 3.3 N.m (34 kgf/cm, 29 in.lbf)

  2. INSTALL REAR NO. 6 LIDAR CLEANER HOSE

    Refer to PROCEDURE - Step 37 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 37 [10/2023 - ]

  3. INSTALL KICK DOOR CONTROL BRACKET

    Refer to PROCEDURE - Step 4

  4. INSTALL REAR BUMPER ASSEMBLY

    Refer to INSTALLATION [11/2021 - 10/2023] , or refer to INSTALLATION [10/2023 - ]

  5. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

  6. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 13 [10/2023 - ]

  7. INSTALL INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    Refer to WORK PROCEDURE [11/2021 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - ]

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [11/2021 - 10/2023] , or refer to AUTOMATIC LEARNING CHART [10/2023 - ]

  8. CHECK KICK DOOR CONTROL SENSOR

    Refer to DATA LIST / ACTIVE TEST [10/2017 - 10/2023] , or refer to DATA LIST / ACTIVE TEST [10/2023 - ]

  9. PERFORM CALIBRATION

    Refer to CALIBRATION [11/2021 - 10/2022] , or refer to CALIBRATION [10/2022 - 10/2023] , or refer to CALIBRATION [10/2023 - ]

  10. ADJUST REAR LIDAR ADVANCED DRIVE SENSOR ASSEMBLY

    Refer to ADJUSTMENT [11/2021 - ]
