Removal [10/2023 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  2. REMOVE UPPER RADIATOR SUPPORT SEAL
    1. Detach the 7 clips to remove the upper radiator support seal.
      GTY964748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Type A
      *B for Type B
  3. REMOVE RADIATOR COVER PLATE
    1. Detach the 7 clips to remove the radiator cover plate.
      GTY820831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LOWER RADIATOR AIR DEFLECTOR
    1. Detach the 7 clips to remove the lower radiator air deflector.
      GTY820828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH
    1. Remove the 2 bolts and radiator support to crossmember brace sub-assembly LH.
      GTY829550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH
    1. Remove the 2 bolts and radiator support to crossmember brace sub-assembly RH.
      GTY785506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 8

  8. REMOVE AIR CLEANER WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 9

  9. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 92

  10. REMOVE FRONT FENDER APRON INSULATOR LH
    1. Remove the 3 bolts and front fender apron insulator LH.
      GTY836947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 18

  12. REMOVE TRANSMISSION UNDER COVER

    Refer to PROCEDURE - Step 19

  13. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 20

  14. REMOVE FRONT SUSPENSION MEMBER BRACE

    Refer to PROCEDURE - Step 21

  15. REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  16. REMOVE REAR FLOOR SIDE MEMBER COVER LH

    See step  1

  17. REMOVE REAR FLOOR SIDE MEMBER COVER RH

    See step  2

  18. REMOVE NO. 2 FLOOR BOARD SUB-ASSEMBLY

    See step  3

  19. REMOVE FLOOR BOARD SUB-ASSEMBLY

    See step  4

  20. REMOVE FRONT CENTER FLOOR BRACE SUB-ASSEMBLY

    See step  5

  21. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    See step  6

  22. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
    1. Remove the 2 bolts and No. 1 exhaust pipe support bracket sub-assembly.
      GTY820827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE FENDER APRON BRACE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 25

  24. REMOVE FENDER APRON BRACE SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 14

  25. REMOVE NO. 1 EGR PIPE

    Refer to PROCEDURE - Step 17

  26. DISCONNECT AIR FUEL RATIO SENSOR
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. for Bank 1 Sensor 1:
      1. Disconnect the connector.
        GTY819163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the 3 wire harness clamps.
    2. for Bank 1 Sensor 2:
      1. Disconnect the connector.
        GTY819174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the 2 wire harness clamps.
    3. for Bank 2 Sensor 1:
      1. GTY836946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Disconnect the connector.

      2. Detach the 4 wire harness clamps.
    4. for Bank 2 Sensor 2:
      1. Disconnect the connector.

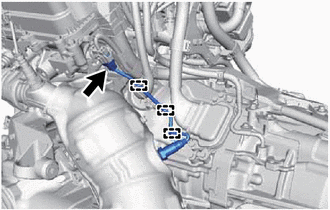

        GTY1236420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the 3 wire harness clamps.
  27. REMOVE FRONT PROPELLER SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 5

  28. REMOVE EXHAUST MANIFOLD ASSEMBLY LH
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 4 nuts, exhaust manifold assembly LH and gasket.
      GTY837305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the 2 air fuel ratio sensors from the exhaust manifold assembly LH.
      • SST: 09224-00012
      GTY816467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Bank 2 Sensor 1 Side
      *B Bank 2 Sensor 2 Side
  29. REMOVE EXHAUST MANIFOLD ASSEMBLY RH
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 4 nuts, exhaust manifold assembly RH and gasket.
      GTY820817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the 2 air fuel ratio sensors from the exhaust manifold assembly RH.
      • SST: 09224-00012
      GTY799833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Bank 1 Sensor 1 Side
      *B Bank 1 Sensor 2 Side
  30. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 6 bolts and 2 No. 1 exhaust manifold heat insulators from the exhaust manifold assembly.
      GTY834242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Exhaust Manifold Assembly LH Side
      *b Exhaust Manifold Assembly RH Side
  31. REMOVE NO. 1 MANIFOLD CONVERTER INSULATOR
    1. Remove the 8 bolts and 2 No. 1 manifold converter insulators from the exhaust manifold assembly.
      GTY825999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Exhaust Manifold Assembly LH Side
      *b Exhaust Manifold Assembly RH Side
  32. REMOVE NO. 2 MANIFOLD CONVERTER INSULATOR
    1. Exhaust manifold assembly LH side:
      GTY787467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Exhaust Manifold Assembly LH Side
      *b Exhaust Manifold Assembly RH Side
      1. Remove the 3 bolts and No. 2 manifold converter insulator from the exhaust manifold assembly.
    2. Exhaust manifold assembly RH side:
      1. Remove the 4 bolts and No. 2 manifold converter insulator from the exhaust manifold assembly.
