Removal [10/2023 - ]: Procedure

  1. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 4

  2. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 3

  3. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 2

  4. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 8

  5. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 3

  6. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the engine oil pressure switch connector.

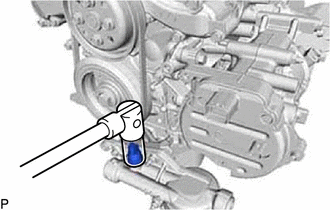

    2. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
      GTY786426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
