Installation [10/2023 - ]: Procedure

INSTALL HEADUP DISPLAY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt
	Connector

Connect the 2 connectors and temporarily install the headup display.

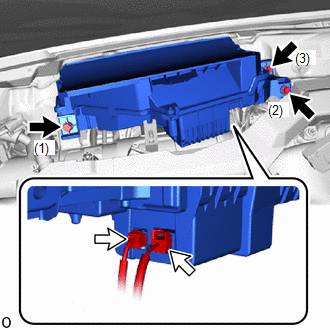

Install the headup display with the 3 bolts in the order shown in the illustration.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to INSTALLATION [10/2023 - ]
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 13
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [10/2022 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [10/2023 - ]
PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR [10/2023 - ]
CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [10/2023 - ]
