Removal [10/2017 - ]: Procedure

  1. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE

    Refer to PROCEDURE - Step 1 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 1 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 1 [10/2023 - ]

  2. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE

    Refer to PROCEDURE - Step 2 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

  3. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

    Refer to PROCEDURE - Step 3 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 3 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 3 [10/2023 - ]

  4. REMOVE SWITCH BEZEL

    Refer to PROCEDURE - Step 4 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 4 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 4 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 4 [10/2023 - ]

  5. REMOVE NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 6 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 6 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 6 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 6 [10/2023 - ]

  7. REMOVE REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  8. REMOVE REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  9. REMOVE UPPER LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH LH

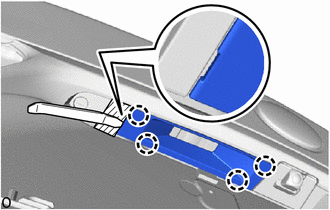

    1. GTY778829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      Put protective tape around the upper luggage compartment door outside garnish LH.

    2. Using a moulding remover, detach the claw and remove the upper luggage compartment door outside garnish LH.
  10. REMOVE UPPER LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  11. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
    1. Remove the 4 screws.
      GTY784533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY823663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
      Protective Tape

      Put protective tape around the luggage compartment door outside garnish sub-assembly.

    3. Detach the clip and remove the luggage compartment door outside garnish sub-assembly as shown in the illustration.
