Removal [10/2017 - ]: Procedure

Refer to PROCEDURE - Step 1

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   	Remove in this Direction

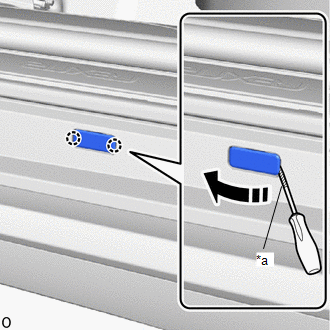

   Using a screwdriver, detach the claw and remove the rear rocker panel moulding end cover LH as shown in the illustration.

   HINT:

   • Tape the screwdriver tip before use.
   • Use the same procedure for the other side.

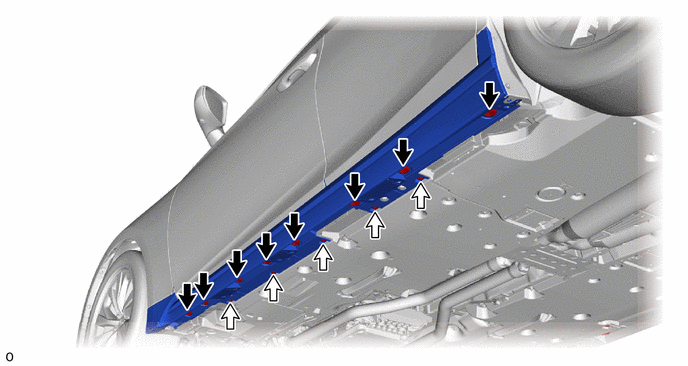

1. Remove the 8 clips labeled A.
2. Remove the 5 clips labeled B.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Clip A

   Clip B

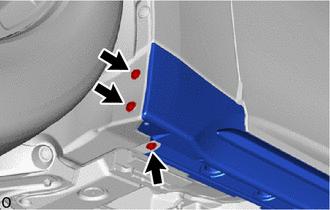

3. Remove the 3 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

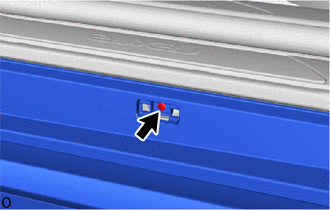

4. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

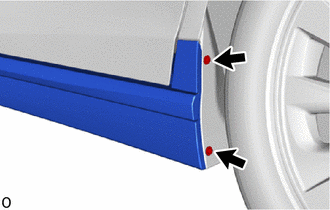

5. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the other side.

6. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

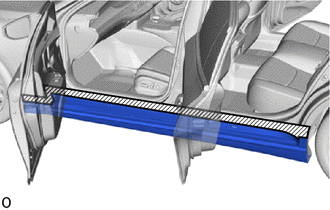

   Put protective tape around the body rocker panel moulding assembly LH.

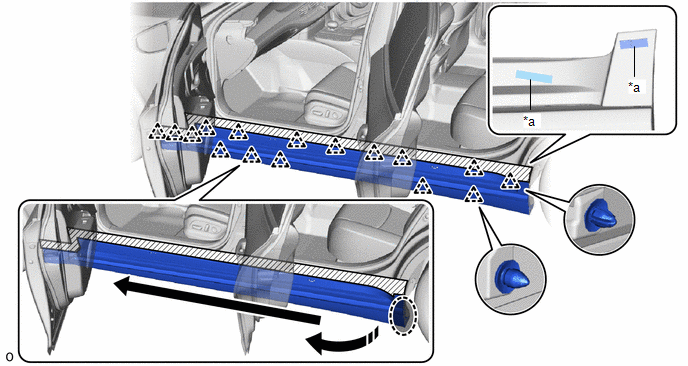

7. Detach the clip and double-sided tape and remove the body rocker panel moulding assembly LH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Double-sided tape	-	-
   	Order of Removal		Place Hands Here
   	Remove in this Direction	-	-

HINT:

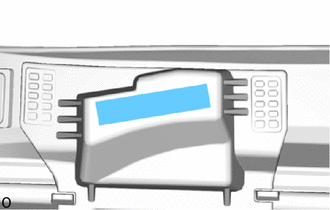

When removing the No. 4 rocker panel moulding protector, heat the body rocker panel moulding assembly LH and No. 4 rocker panel moulding protector using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Remove the No. 4 rocker panel moulding protector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When removing the No. 5 rocker panel moulding protector, heat the body rocker panel moulding assembly LH and No. 5 rocker panel moulding protector using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the No. 5 rocker panel moulding protector.
