Removal [10/2017 - ]: Procedure

  1. REMOVE ROCKER PANEL MOULDING PROTECTOR LH

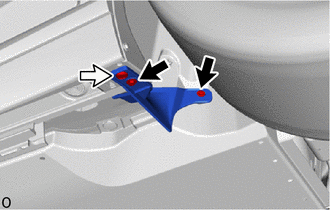

    1. Remove the 2 screws.
      GTY784417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Clip
    2. Remove the clip and rocker panel moulding protector LH.
