Removal [10/2017 - 09/2018]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [10/2017 - 10/2020]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2017 - 09/2019]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

    WARNING:
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2017 - 09/2018]

  4. REMOVE REAR DOOR TRIM UPPER COVER LH

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR DOOR ARMREST COVER LH

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR DOOR NO. 2 ARMREST COVER LH

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR DOOR TRIM COVER LH

    Refer to PROCEDURE - Step 15

  9. REMOVE REAR DOOR NO. 2 FRAME GARNISH LH

    Refer to PROCEDURE - Step 16

  10. REMOVE REAR DOOR FRAME GARNISH LH

    Refer to PROCEDURE - Step 17

  11. REMOVE CURTAIN RAIL SIDE COVER LH (w/ Rear Door Sunshade)

    Refer to PROCEDURE - Step 18

  12. REMOVE REAR CURTAIN SUB-ASSEMBLY LH (w/ Rear Door Sunshade)

    Refer to PROCEDURE - Step 8

  13. REMOVE REAR SIDE WINDOW COVER LH (w/ Rear Door Sunshade)

    Refer to PROCEDURE - Step 20

  14. REMOVE REAR DOOR GLASS INNER WEATHERSTRIP LH

    Refer to PROCEDURE - Step 21

  15. REMOVE REAR MULTIPLEX NETWORK DOOR ECU LH

    Refer to PROCEDURE - Step 25

  16. REMOVE REAR DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 26

  17. REMOVE REAR DOOR FRONT BELT MOULDING END COVER LH

    Refer to PROCEDURE - Step 27

  18. REMOVE REAR DOOR REAR BELT MOULDING END COVER LH

    Refer to PROCEDURE - Step 28

  19. REMOVE REAR DOOR NO. 2 WEATHERSTRIP LH

    Refer to PROCEDURE - Step 29

  20. REMOVE REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)

    Refer to PROCEDURE - Step 20

  21. REMOVE REAR DOOR WINDOW FRAME MOULDING LH (REAR PILLAR SIDE)

    Refer to PROCEDURE - Step 22

  22. REMOVE REAR DOOR OUTSIDE MOULDING INSERT LH

    Refer to PROCEDURE - Step 23

  23. REMOVE REAR DOOR BELT MOULDING LH

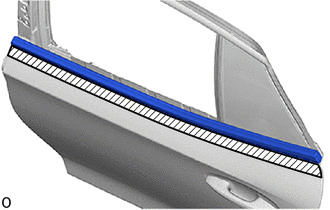

    1. GTY780262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      Put protective tape around the rear door belt moulding LH.

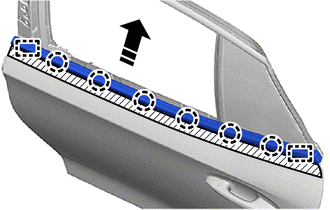

    2. Detach the claw and guide and remove the rear door belt moulding LH.
      GTY816608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  24. REMOVE REAR DOOR QUARTER WINDOW GLASS SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 34

  25. REMOVE REAR DOOR GLASS RUN LH

    Refer to PROCEDURE - Step 35

  26. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 36

  27. REMOVE REAR DOOR FRONT WINDOW GUIDE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 37

  28. REMOVE REAR DOOR REAR WINDOW FRAME LH

    Refer to PROCEDURE - Step 38

  29. REMOVE REAR DOOR BELT MOULDING SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 30
