Removal [10/2017 - 10/2020]: Procedure

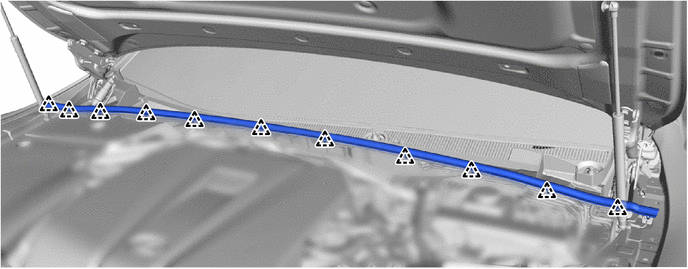

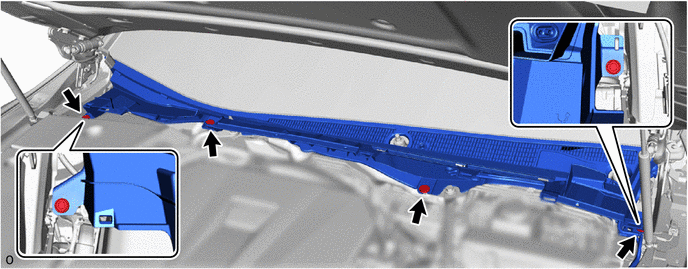

- REMOVE UPPER RADIATOR SUPPORT SEAL
Refer to PROCEDURE - Step 2
- REMOVE FRONT WIPER ARM HEAD CAP

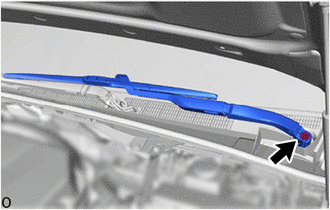

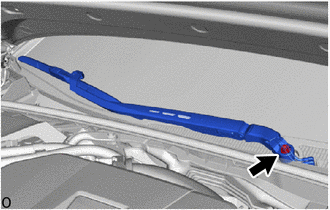

- REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
- REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
- REMOVE FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP LH
Refer to PROCEDURE - Step 2
- REMOVE HOOD TO COWL TOP SEAL

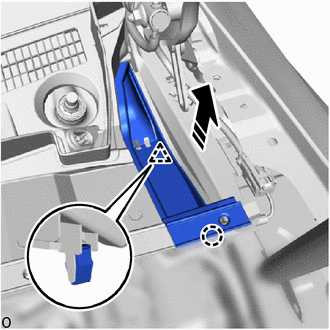

- REMOVE COWL TOP VENTILATOR LOUVER REINFORCEMENT

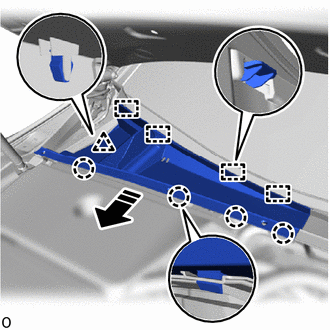

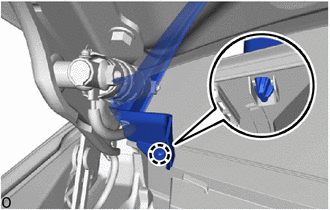

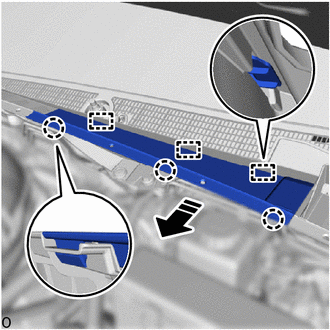

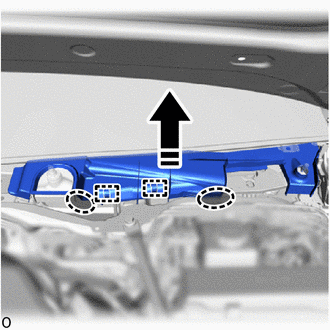

Remove in this Direction - Detach the claw and clip and remove the cowl top ventilator louver reinforcement as shown in the illustration.
- REMOVE CENTER NO. 2 COWL TOP VENTILATOR LOUVER
- REMOVE CENTER COWL TOP VENTILATOR LOUVER
- REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
- Type A:

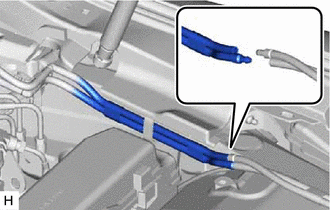

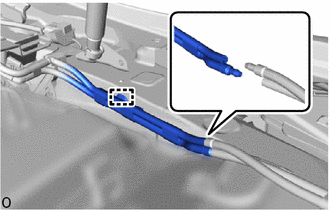

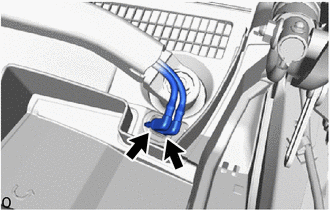

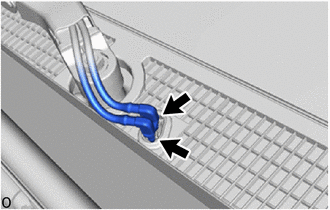

- Disconnect the 2 windshield washer hose assemblies as shown in the illustrationNOTE:
Make sure to disconnect the windshield washer hose assembly as shown in the illustration to prevent improper installation during reinstallation.
- Disconnect the clamp.

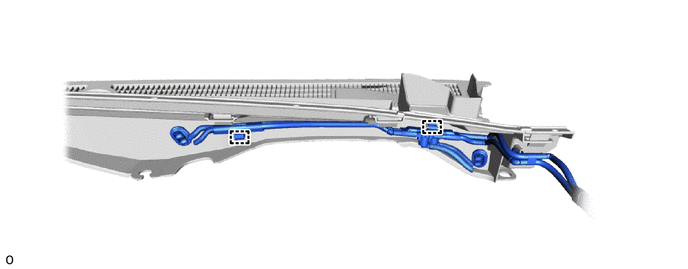

- Disconnect the 2 windshield washer hose assemblies as shown in the illustration
- Type B:
- Disconnect the 2 windshield washer hose assemblies as shown in the illustrationNOTE:
Make sure to disconnect the windshield washer hose assembly as shown in the illustration to prevent improper installation during reinstallation.
- Disconnect the 2 windshield washer hose assemblies as shown in the illustration

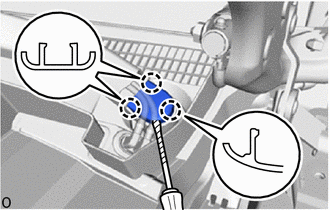

- Remove the 4 clips.
- Detach the claw and partially remove the lower windshield outside moulding RH.
HINT:
Use the same procedure for the RH and LH sides.
- Apply protective tape to the moulding remover as shown in the illustration.
*a Edge of Protective Tape Protective Tape Standard Dimension
Location Measurement A 4.0 mm (0.157 in.) - Insert the moulding remover into the work start position until the edge of the protective tape as shown in the illustration.

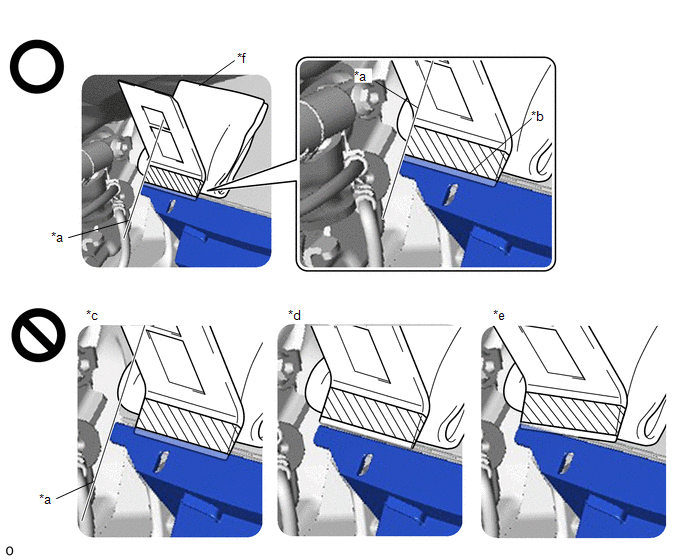

*a Starting Position:
Side of Cowl Top Ventilator Louver Sub-assembly and Moulding Remover Aligned*b Inserted to Edge of Protective Tape *c Not Inserted at Starting Position *d Not Inserted to Edge of Protective Tape *e Not Inserted Straight *f Piece of Cloth or Equivalent Protective Tape - - NOTE:- The windshield glass may become damaged. Therefore, place a cloth between the moulding remover and windshield glass.
- Be sure to insert the moulding remover until the edge of the protective tape as the cowl top ventilator louver sub-assembly may become deformed or damaged.

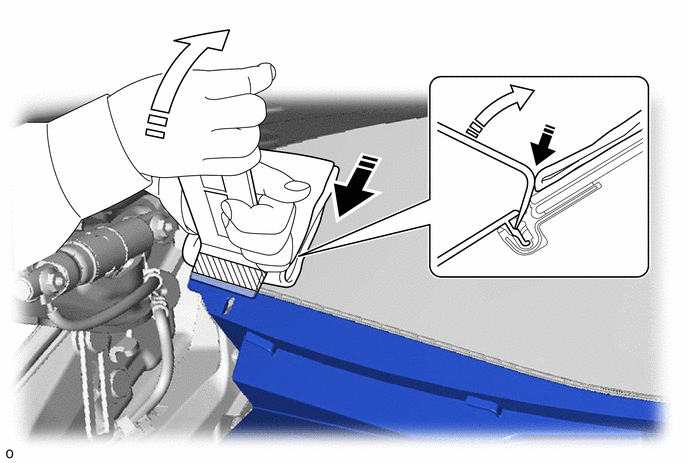

- While holding down the moulding remover in the direction (A) indicated by the arrow, pry in the direction (B) indicated by the arrow to detach as shown in the illustration.
Push in this Direction (A) Push in this Direction (B) NOTE:- Use the same procedure until completely detached.
- If the work is not performed while holding down the moulding remover in the direction (A) indicated by the arrow, the cowl top ventilator louver sub-assembly may become deformed or damaged.
- Once detached by the moulding remover, do not apply more load in the prying direction as the cowl top ventilator louver sub-assembly may become deformed or damaged.

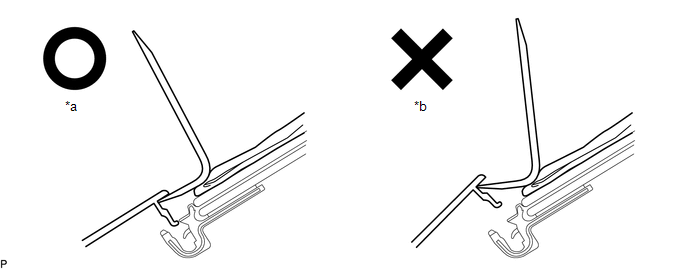

*a Pried Until Disengaged *b Pried Excessively

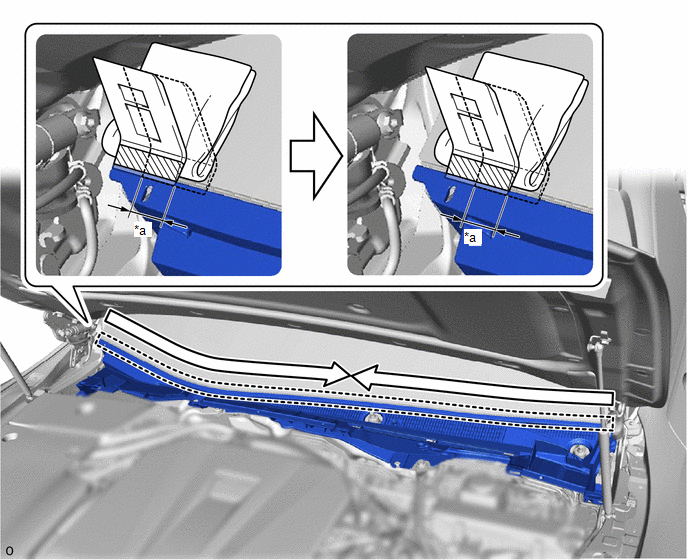

- Slide the moulding remover repeatedly by half of its width and gradually detach the cowl top ventilator louver sub-assembly from the windshield glass from both ends as shown in the illustration.
*a Half Width of Moulding Remover - - Order of Removal - - NOTE:- Be sure to detach by sliding the moulding remover repeatedly by half of its width as the cowl top ventilator louver sub-assembly may become deformed or damaged.
- Be sure to detach with the moulding remover until the cowl top ventilator louver sub-assembly is completely detached and do not apply load such as by lifting up the cowl top ventilator louver sub-assembly by hand as it may become deformed or damaged.

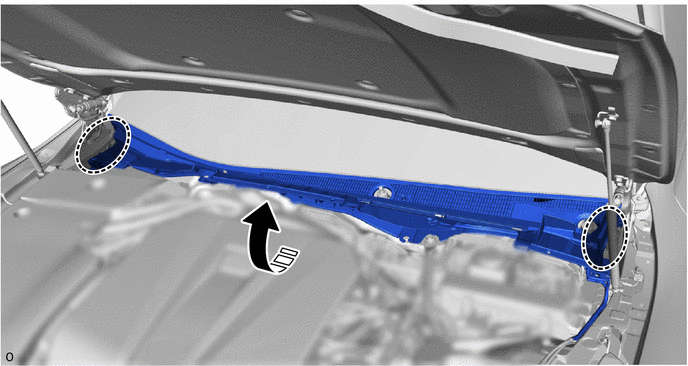

- Pull the front of the cowl top ventilator louver sub-assembly upward and rotate it as shown in the illustration, and remove the cowl top ventilator louver sub-assembly.
Place Hand Here Remove in this Direction
- Type A:
- REMOVE WINDSHIELD WASHER HOSE ASSEMBLY
- LH Side:

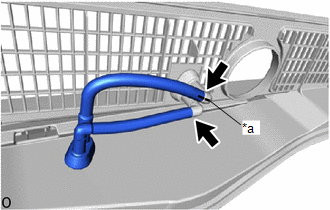

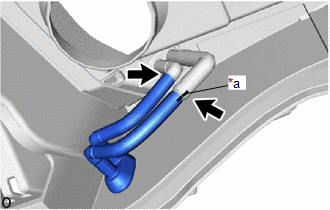

- Disconnect the 2 windshield washer hose assemblies from the No. 1 washer grommet sub-assembly.NOTE:
Make sure to apply matchmarks on the cowl top ventilator louver sub-assembly and windshield washer hose assembly to prevent improper installation during reinstallation.

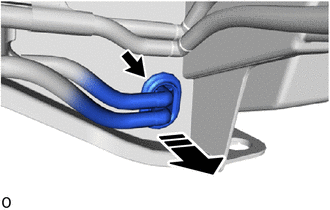

*a Matchmark - Disconnect the grommet and pull out the windshield washer hose assembly.
HINT:
If the grommet connection is stiff, disconnect it after removing the windshield washer hose assembly.
Remove in this Direction

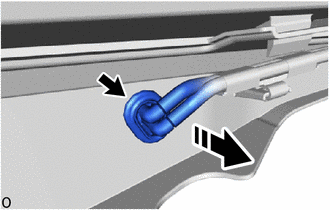

- Disconnect the 2 windshield washer hose assemblies from the No. 1 washer grommet sub-assembly.
- RH Side:
- Disconnect the 2 windshield washer hose assemblies from the No. 2 washer grommet sub-assembly.
*a Matchmark NOTE:Make sure to apply matchmarks on the cowl top ventilator louver sub-assembly and windshield washer hose assembly to prevent improper installation during reinstallation.
- Disconnect the grommet and pull out the windshield washer hose assembly.
Remove in this Direction HINT:
If the grommet connection is stiff, disconnect it after removing the windshield washer hose assembly.
- Disconnect the 2 windshield washer hose assemblies from the No. 2 washer grommet sub-assembly.
- Detach the clamp and remove the windshield washer hose assembly.
- LH Side:

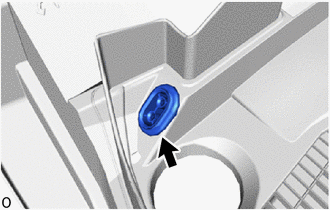

- REMOVE NO. 1 WASHER GROMMET SUB-ASSEMBLY
- REMOVE NO. 2 WASHER GROMMET SUB-ASSEMBLY
HINT:
Use the same procedure for the No. 1 washer grommet sub-assembly.

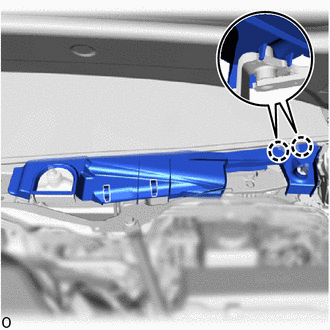

- REMOVE WIPER MOTOR COVER
Place Hand Here Remove in this Direction - REMOVE FRONT WIPER MOTOR AND LINK (for Type A)
- REMOVE FRONT WIPER MOTOR AND LINK (for Type B)

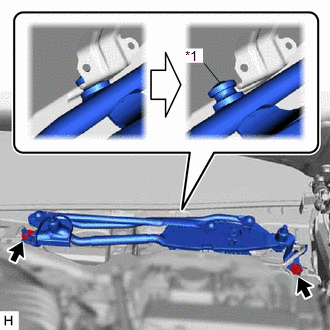

- Remove the 2 bolts.

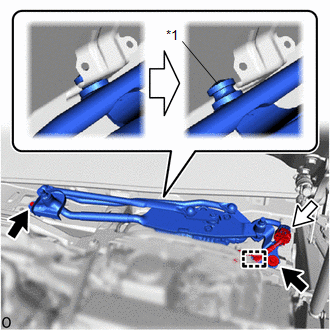

*1 Grommet Bolt - Detach the grommet and remove the front wiper motor and link as shown in the illustration.NOTE:
Do not damage the vehicle with the front wiper motor and link.

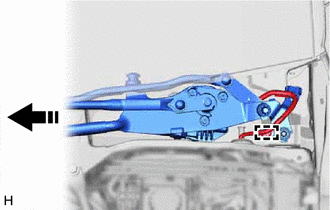

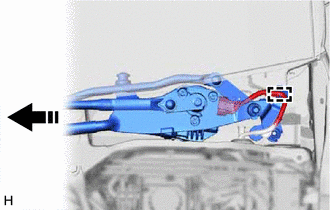

- Slide the front wiper motor and link toward the inside of the vehicle and detach the wire harness clamp.
Slide in this Direction Slide in this Direction Slide the front wiper motor and link toward the inside of the vehicle and detach the wire harness clamp.

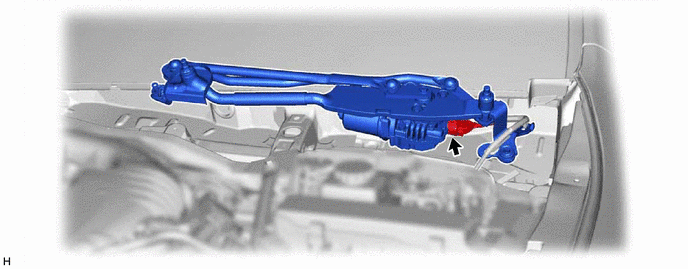

- Pull out the front wiper motor and link from the vehicle and disconnect the connector.
- Remove the 2 bolts.
- REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

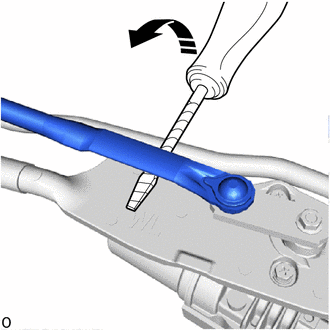

- Using a screwdriver with its tip wrapped with protective tape, disconnect the No. 1 wiper ring rod from the wiper motor pivot as shown in the illustration.
Remove in this Direction Protective Tape - for Type A:

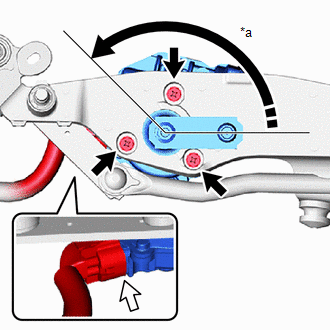

*a 135° Rotate in this Direction Bolt Connector - Disconnect the connector.

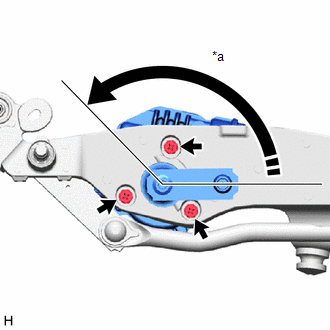

- Rotate the wiper crank arm 135° in the counterclockwise direction from the automatic stop position.
- Remove the 3 bolts and the windshield wiper motor assembly.NOTE:
Do not remove the wiper crank arm from the windshield wiper motor assembly.
- for Type B:
*a 135° Rotate in this Direction Bolt - Rotate the wiper crank arm 135° in the counterclockwise direction from the automatic stop position.
- Remove the 3 bolts and the windshield wiper motor assembly.NOTE:
Do not remove the wiper crank arm from the windshield wiper motor assembly.
- Using a screwdriver with its tip wrapped with protective tape, disconnect the No. 1 wiper ring rod from the wiper motor pivot as shown in the illustration.
