Removal [11/2021 - 10/2023]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]

  2. REMOVE FRONT SIDE RADAR SENSOR (for LH Side)
    1. w/o Advanced Drive:

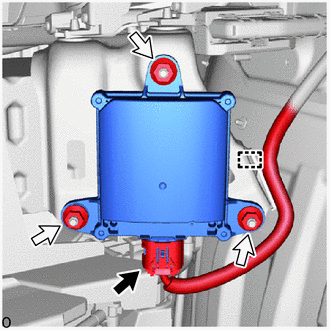

      GTY791533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Nut
      1. Disconnect the connector.
      2. Detach the wire harness clamp.
      3. Remove the 3 nuts and front side radar sensor.

        HINT:

        Replace nut with a new one.

    2. w/ Advanced Drive:
      GTY966249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Nut
      1. Disconnect the connector.
      2. Remove the 3 nuts and front side radar sensor.

        HINT:

        Replace nut with a new one.

  3. REMOVE FRONT SIDE RADAR SENSOR (for RH Side)

    HINT:

    Use the same procedure described for the LH side (w/o Advanced Drive).

  4. REMOVE FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP LH

    Refer to PROCEDURE - Step 2

  5. REMOVE FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE HEADLIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  7. REMOVE HEADLIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  8. REMOVE FRONT SIDE RADAR SENSOR BRACKET LH
    1. Remove the 3 bolts and front side radar sensor bracket LH.
      GTY966318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT SIDE RADAR SENSOR BRACKET RH

    HINT:

    Use the same procedure described for the LH side.
