Removal [11/2021 - 10/2023]: Procedure

Refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]

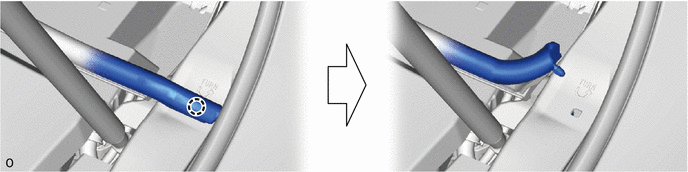

1. Push the front tip of the front fender reinforcement top sub-assembly LH downwards to disconnect the hook.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Downward

   Detach the hook

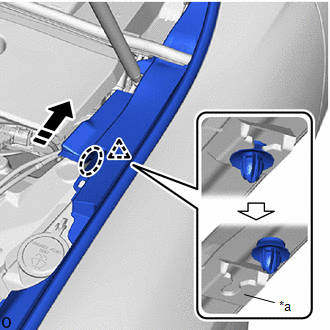

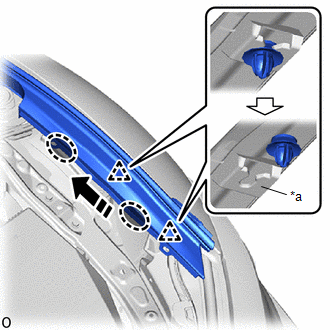

2. Hold the area shown in the illustration and pull toward the front of the vehicle to disconnect the clip from the base.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Base
   	Place Hands Here
   	Pull Forward

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Base
   	Place Hands Here
   	Pull Inside

   Hold the area shown in the illustration and pull toward the inside of the vehicle to disconnect the clip from the base.

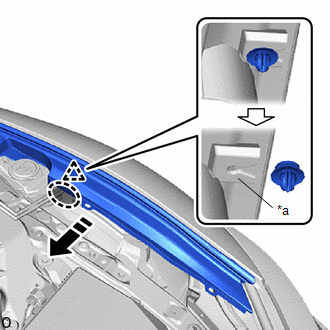

4. Hold the area shown in the illustration and pull toward the rear of the vehicle to disconnect the clip from the base.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Base
   	Place Hands Here
   	Pull Backward

5. Lift up the hood to cowl top seal to detach the claw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

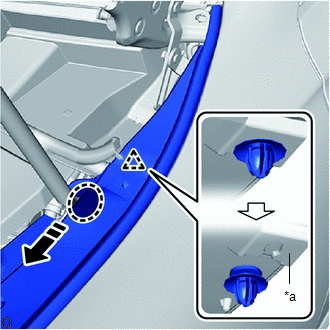

6. Hold the area shown in the illustration and pull toward the front of the vehicle to disconnect the clip from the base.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Base
   	Place Hands Here
   	Pull Forward

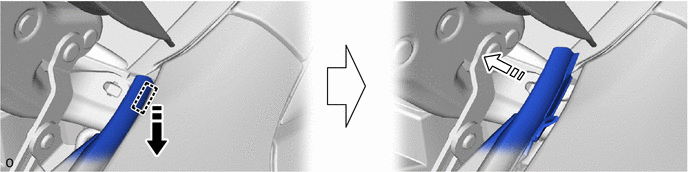

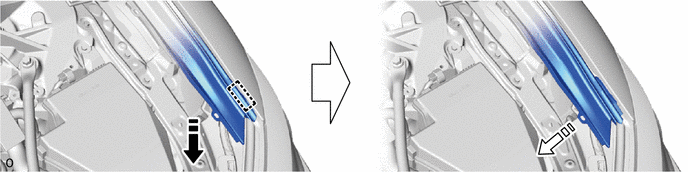

7. Lower the rear end of the front fender reinforcement sub-assembly top LH and detach the hook toward the inside of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Downward

   Detach the Hook

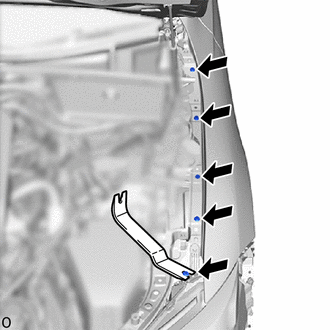

8. Using a moulding remover, detach the remaining 5 clips on the vehicle and install them to the front fender reinforcement sub-assembly top LH.
   NOTE:

   When detaching any clips remaining on the headlight assembly LH, do not damage the clip installation area.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

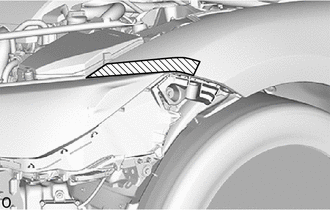

1. Apply protective tape around the headlight assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

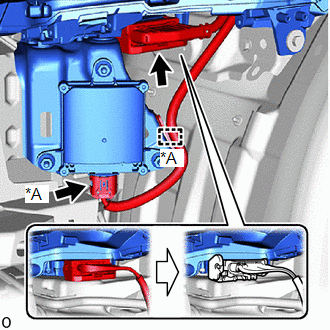

2. w/ Front Side Radar:

   Disconnect the connector and detach the wire harness clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Front Side Radar

3. Release the connector lock lever and disconnect the connector.

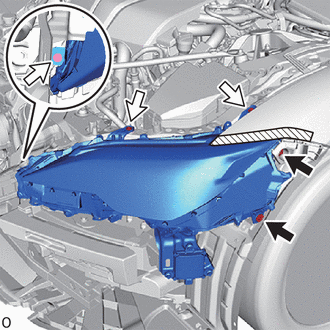

4. Remove the 2 bolts and 3 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Screw

5. Place your hand on 2 brackets of the headlight assembly LH to disconnect them from the screw seats.
   NOTE:

   Be careful not to break the bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hands Here
   	Remove in this Direction (1)
   	Remove in this Direction (2)

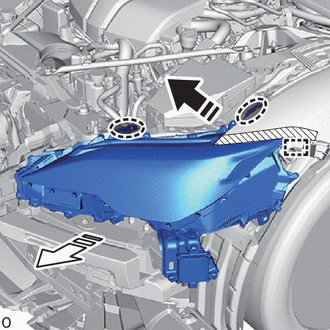

6. Slide the headlight assembly LH in the direction indicated by the arrow (1) and detach the guide.
7. Slide the headlight assembly LH in the direction indicated by the arrow (2) and remove it.
