Removal [11/2021 - 10/2022]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (w/ Advanced Park)

    Refer to PROCEDURE - Step 25

  2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (w/ Advanced Park)

    Refer to PROCEDURE - Step 24

  3. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH (w/ Advanced Park)

    Refer to PROCEDURE - Step 26

  4. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 27

  5. REMOVE TOOL BOX (w/ Advanced Park)

    Refer to PROCEDURE - Step 28

  6. REMOVE INNER LOWER LUGGAGE COMPARTMENT TRIM COVER (w/ Advanced Park)

    Refer to PROCEDURE - Step 29

  7. REMOVE ROPE HOOK ASSEMBLY (w/ Advanced Park)

    Refer to PROCEDURE - Step 10

  8. REMOVE REAR FLOOR FINISH PLATE (w/ Advanced Park)

    Refer to PROCEDURE - Step 11

  9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/ Advanced Park)

    Refer to PROCEDURE - Step 31

  10. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (w/ Advanced Park)

    Refer to PROCEDURE - Step 1

  11. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (w/ Advanced Park)

    Refer to PROCEDURE - Step 34

  12. REMOVE SIDE TRIM BOX

    Refer to PROCEDURE - Step 16

  13. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH (w/ Advanced Park)

    Refer to PROCEDURE - Step 17

  14. REMOVE CLEARANCE WARNING ECU ASSEMBLY
    1. Disconnect the connector.

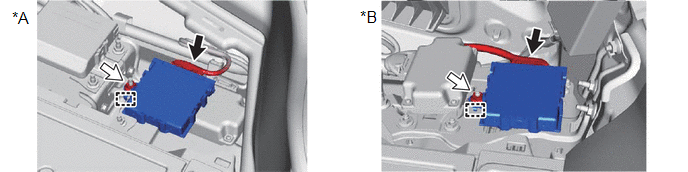

      GTY965893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Advanced Park *B w/ Advanced Park
      Connector Nut
    2. Remove the nut.
      NOTE:

      If the removed nut is the same shape as that shown in the illustration, replace it the supplied replacement part.

      GTY833118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the guide and remove the clearance warning ECU assembly.
  15. REMOVE ECU WATER PROOF COVER (w/ Advanced Park)

    HINT:

    • Perform this procedure only when replacement of the ECU water proof cover is necessary.
    • An ECU water proof cover may not be installed.
    1. Remove the ECU water proof cover.
      GTY1173149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
