Removal [10/2023 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 24

  3. REMOVE TOOL BOX

    Refer to PROCEDURE - Step 28

  4. REMOVE LOWER INNER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 29

  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 27

  6. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 10

  7. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 11

  8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 30

    saccsacsacsac

  9. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  10. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 33

    cdssdscds

  11. REMOVE SIDE TRIM BOX

    Refer to PROCEDURE - Step 14

  12. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH

    Refer to PROCEDURE - Step 17

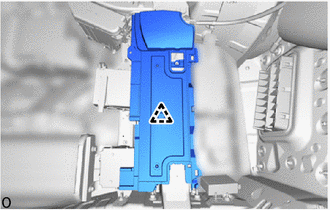

  13. REMOVE REAR LUGGAGE COMPARTMENT TRAY BRACKET RH
    1. Detach the claw and open the cap.
    2. Remove the bolt and rope hook assembly.
    3. Detach the clip and remove the rear luggage compartment tray bracket RH.
      GTY1241417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE SUSPENSION CONTROL ECU

    Refer to PROCEDURE - Step 10

  15. REMOVE CLEARANCE WARNING ECU ASSEMBLY

    Refer to PROCEDURE - Step 16

  16. REMOVE STEREO COMPONENT EQUALIZER ASSEMBLY

    Refer to PROCEDURE - Step 2

  17. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
    1. Remove the 3 nuts.
      GTY1135267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 12 Speakers *B for 24 Speakers

      HINT:

      If the removed nut is the same shape as that shown in the illustration, replace it the supplied replacement part.

      GTY833118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the stereo component amplifier assembly with bracket.
    3. for 12 Speakers:
      1. Disconnect the 3 connectors and remove the stereo component amplifier assembly with bracket.
        GTY1136093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. for 24 Speakers:
      1. Disconnect the 4 connectors and remove the stereo component amplifier assembly with bracket.
        GTY835563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 1 AMPLIFIER BRACKET
    1. Remove the 2 screws and No. 1 amplifier bracket.
      GTY1135729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 12 Speakers *B for 24 Speakers
  19. REMOVE NO. 2 AMPLIFIER BRACKET
    1. Remove the 2 screws and No. 2 amplifier bracket.
      GTY1136808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 12 Speakers *B for 24 Speakers
  20. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY
