Installation [10/2023 - ]: Procedure

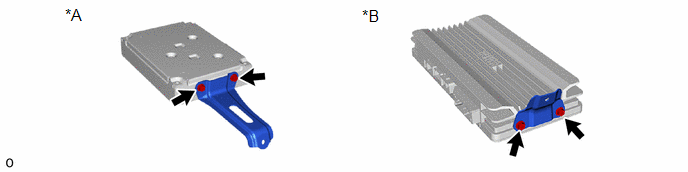

1. Install the No. 2 amplifier bracket with the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   for 12 Speakers

   *B

   for 24 Speakers

   for 12 Speakers

   Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

   for 24 Speakers Type A

   Torque: 5.8 N.m (59 kgf/cm, 51 in.lbf)

   for 24 Speakers Type B

   Torque: 3.9 N.m (40 kgf/cm, 35 in.lbf)

   Standard Length

   Item	Length
   Type A	10.4 mm (0.409 in.)
   Type B	8.0 mm (0.315 in.)

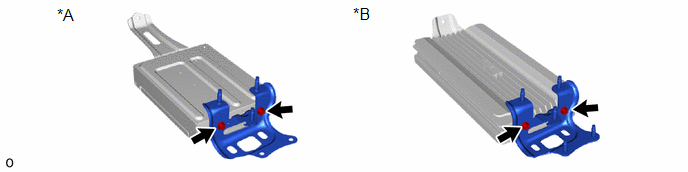

1. Install the No. 1 amplifier bracket with the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   for 12 Speakers

   *B

   for 24 Speakers

   for 12 Speakers

   Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

   for 24 Speakers Type A

   Torque: 5.8 N.m (59 kgf/cm, 51 in.lbf)

   for 24 Speakers Type B

   Torque: 3.9 N.m (40 kgf/cm, 35 in.lbf)

   Standard Length

   Item	Length
   Type A	10.4 mm (0.409 in.)
   Type B	8.0 mm (0.315 in.)

1. for 12 Speakers:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Connect the 3 connectors.
2. for 24 Speakers:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Connect the 4 connectors.

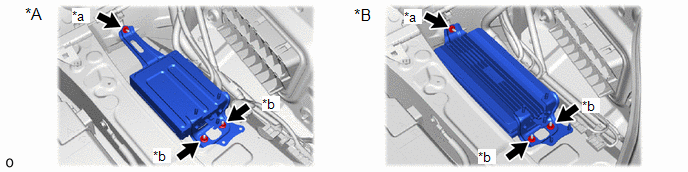

3. Set the stereo amplifier with bracket assembly to the vehicle and temporarily install it using the 3 nuts.

   HINT:

   If the removed nut is the same shape as that shown in the illustration, replace it the supplied replacement part.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Tighten nut a.

   Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

5. Tighten nut b.

   Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for 12 Speakers	*B	for 24 Speakers
   *a	Nut A	*b	Nut B

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 1

1. Attach the clip and install the rear luggage compartment tray bracket RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the rope hook assembly with the bolt.

   Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)

3. Attach the claw and close the cap.

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 7

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 12

Refer to PROCEDURE - Step 9

Refer to PROCEDURE - Step 10

Refer to PROCEDURE - Step 14

Refer to PROCEDURE - Step 13

HINT:

When replacing the stereo component amplifier assembly, perform registration.

Refer to REGISTRATION [10/2022 - ]
