Removal [10/2017 - 10/2020]: Procedure
- REMOVE FRONT STEERING CONTROL ECU (w/ VGRS)
Refer to REMOVAL [10/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]
- REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/o VGRS)
Refer to REMOVAL [10/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]
- REMOVE INSTRUMENT SIDE PANEL LH (w/o VGRS)
Refer to PROCEDURE - Step 7 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 7 [09/2018 - 10/2020]
- REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY (w/o VGRS)
Refer to PROCEDURE - Step 14 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 14 [09/2018 - 10/2020]
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY (w/o VGRS)
Refer to PROCEDURE - Step 21 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 21 [09/2018 - 10/2020]
- REMOVE GLOVE COMPARTMENT DOOR PAD PLATE (w/o VGRS)
Refer to PROCEDURE - Step 29 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 29 [09/2018 - 10/2020]
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (w/o VGRS)
Refer to PROCEDURE - Step 30 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 30 [09/2018 - 10/2020]
- REMOVE PASSENGER SIDE JUNCTION BLOCK ASSEMBLY WITH NETWORK GATEWAY ECU
- Detach the clamp.
- Disconnect the 4 connectors.
- Disconnect the 2 connectors.
*a Lever Connector - - Rotate in this Direction Protective Tape - Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and disconnect the 2 lever connectors.
- w/ VGRS:

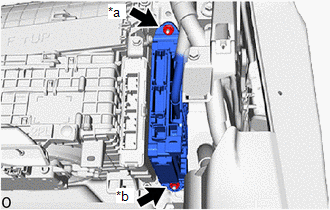

*a Nut (A) *b Nut (B) - Remove the nut (A).
- w/o VGRS:
- Remove the nut (A) and nut (B).
- Detach the claw and remove the passenger side junction block with network gateway ECU assembly.
*a Lever Connector - - Rotate in this Direction Protective Tape - Disconnect the connector.
- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and disconnect the 2 lever connectors.
- Detach the clamp.
- REMOVE NETWORK GATEWAY ECU
