Removal [10/2017 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 16 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 16 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 16 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 16 [10/2023 - ]

  2. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 37 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 37 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 40 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 40 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 39 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 39 [10/2023 - ]

  3. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
    1. Detach the claw and remove the automatic light control sensor.

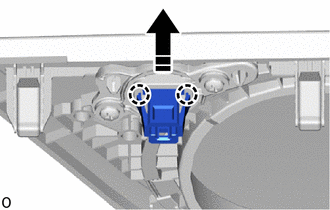

      GTY826680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
