Installation [10/2023 - ]: Procedure

INSTALL SPEAKER ASSEMBLY WITH BRACKET (for 24 Speakers)

NOTE:

Do not touch the cone of the speaker assembly with bracket.

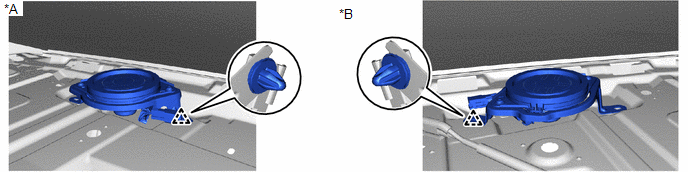

Attach the clip to the body and temporarily install the speaker assembly with bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for LH Side

for RH Side

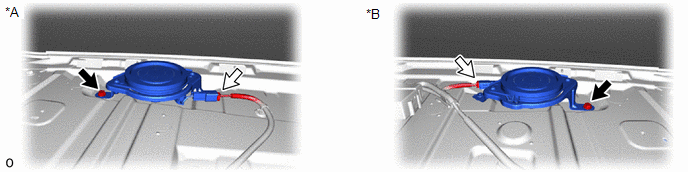

Connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for LH Side	*B	for LH Side
	Bolt		Connector

INSTALL REAR WINDOW SHADE ASSEMBLY (for 24 Speakers)
Refer to PROCEDURE - Step 1
INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (for 24 Speakers)
Refer to PROCEDURE - Step 2
INSTALL INNER ROOF SIDE GARNISH ASSEMBLY LH (for 24 Speakers)
Refer to PROCEDURE - Step 20
INSTALL INNER ROOF SIDE GARNISH ASSEMBLY RH (for 24 Speakers)
Refer to PROCEDURE - Step 21

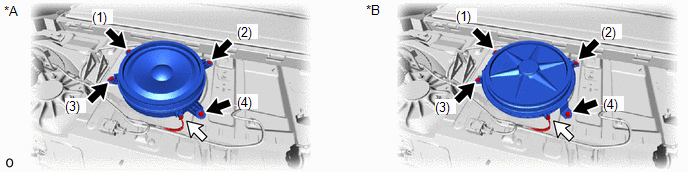

INSTALL REAR NO. 3 SPEAKER ASSEMBLY

NOTE:

Do not touch the cone of the rear No. 3 speaker assembly.

Install the rear No. 3 speaker assembly with the 4 bolts in the order shown in the illustration.
Torque: 10.5 N.m (107 kgf/cm, 8 ft.lbf)

Connect the connector.

*A	for 12 Speakers	*B	for 24 Speakers
	Bolt		Connector

INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
1. for Fixed Seat Type:
  Refer to INSTALLATION [10/2023 - ]
2. for Power Seat:
  Refer to INSTALLATION [10/2023 - ]
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 13
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [10/2022 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [10/2023 - ]
CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [10/2023 - ]
INSPECT SEAT BELT WARNING SYSTEM
Refer to ON-VEHICLE INSPECTION [10/2023 - ]
INSPECT SEAT HEATER SYSTEM
Refer to OPERATION CHECK [10/2022 - ]
INSPECT CLIMATE CONTROL SEAT SYSTEM
Refer to ON-VEHICLE INSPECTION [10/2022 - ]
INSPECT SEAT VIBRATION SYSTEM (w/ Refresh Seat)
Refer to OPERATION CHECK [10/2022 - ]
