Removal [10/2020 - 10/2022]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 14 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 14 [11/2021 - 10/2022]

  2. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 11 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 11 [11/2021 - 10/2022]

  3. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 12 [11/2021 - 10/2022]

  4. REMOVE COWL SIDE TRIM BOARD RH

    Refer to PROCEDURE - Step 13 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 13 [11/2021 - 10/2022]

  5. REMOVE PARKING ASSIST ECU

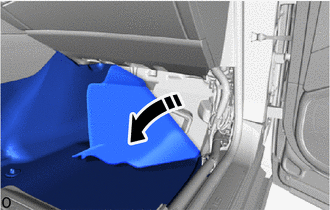

    1. Remove the front floor front carpet assembly.
      NOTE:

      It is not necessary to fully remove the floor carpet. Partially remove it so that the parking assist ECU can be removed in a later step.

      GTY780386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

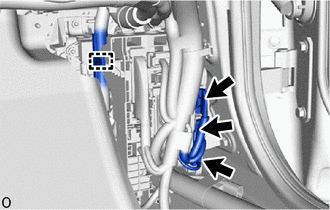

    2. Detach the clamp and remove the wire harness from the connector holder.
      GTY777548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 3 connectors.

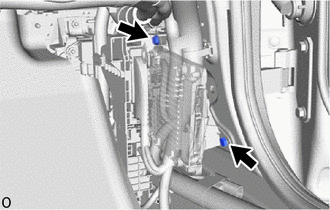

    4. Remove the 2 bolts.
      GTY777547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

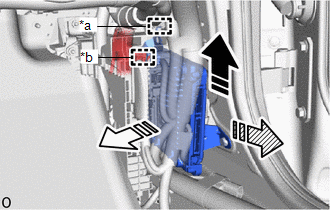

    5. Move the parking assist ECU in the direction of the arrow in the illustration and detach the hook.
      GTY785597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Clamp
      Remove in this Direction (1)
      Remove in this Direction (2)
      Remove in this Direction (3)
    6. Detach the clamp and remove the parking assist ECU.
