Removal [10/2017 - 09/2018]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 23

  3. REMOVE TOOL BOX

    Refer to PROCEDURE - Step 27

  4. REMOVE LOWER INNER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 28

  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 26

  6. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 10

  7. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 11

  8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 29

  9. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  10. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 31

  11. REMOVE SIDE TRIM BOX

    Refer to PROCEDURE - Step 9

  12. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH

    Refer to PROCEDURE - Step 15

  13. REMOVE THEFT WARNING SIREN ASSEMBLY
    NOTE:

    Do not reuse dropped or damaged parts.

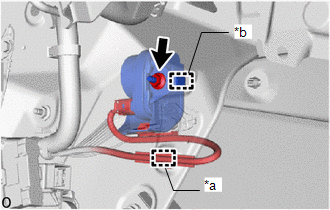

    1. Detach the clamp.
      GTY789002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Remove the nut.
    3. Detach the guide and remove the theft warning siren assembly from vehicle body.
    4. Disconnect the connector.
      GTY812570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Detach the clamp and remove the theft warning siren assembly.
