Removal [10/2020 - 10/2023]: Procedure

  1. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE

    Refer to PROCEDURE - Step 1 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - 10/2023]

  2. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE

    Refer to PROCEDURE - Step 2 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - 10/2023]

  3. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

    Refer to PROCEDURE - Step 3 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - 10/2023]

  4. REMOVE SWITCH BEZEL

    Refer to PROCEDURE - Step 4 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 4 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - 10/2023]

  5. REMOVE NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 6 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 6 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 10/2023]

  7. REMOVE LUGGAGE DOOR CLOSER ASSEMBLY

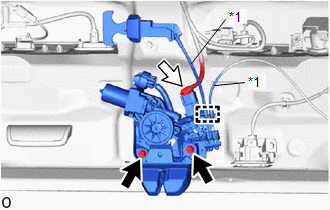

    1. Disconnect the connector.
      GTY966299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Luggage Door Lock Control Cable Sub-assembly
    2. Detach the guide and remove the 2 luggage door lock control cable sub-assemblies.
    3. Remove the 2 bolts.

      HINT:

      Remove the luggage door closer assembly while supporting it with one hand.

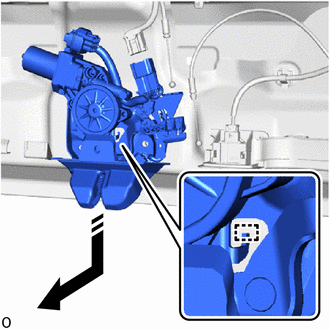

    4. Detach the guide and remove the luggage door closer assembly in the direction indicated by the arrow shown in the illustration.
      GTY966125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
