Removal [05/2023 - ]: Procedure

  1. REMOVE FRONT BUMPER COVER

    Refer to REMOVAL [05/2023 - ]

  2. REMOVE FRONT FENDER REINFORCEMENT TOP SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  4. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Detach the claws and remove the hood lock control lever sub-assembly.

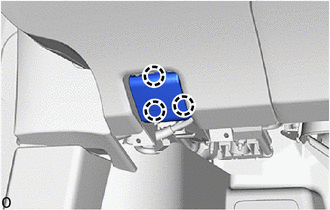

      GTY800160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.
      GTY817315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR

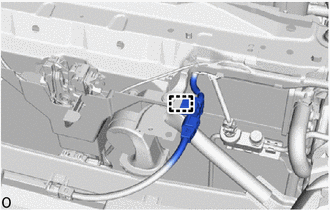

    1. Detach the harness clamp.
      GTY950517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clips.

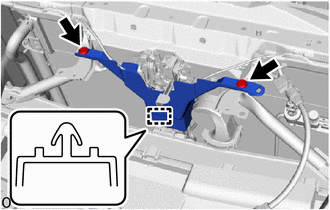

      GTY950520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the clamp to remove the hood lock release lever protector.
  6. REMOVE HOOD LOCK CONTROL CABLE COVER LH
    1. Detach the clamps and remove the hood lock control cable cover LH.

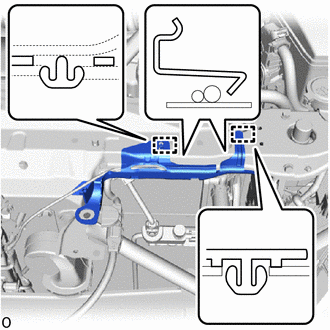

      GTY950521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE HOOD LOCK ASSEMBLY
    1. Disconnect the connector.

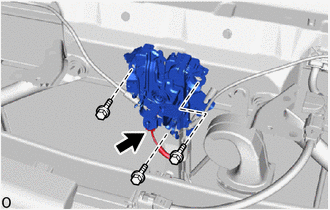

      GTY950518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and hood lock assembly.
    3. Disconnect the hood lock control cable assembly and hood lock control assembly to remove the hood lock assembly.

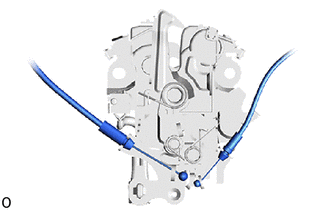

      GTY800155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Tie a string to the end of the hood lock control cable assembly.
      GTY505692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a length of string long enough to pass through the engine compartment.

    2. Pull out the hood lock control cable assembly through the wire harness grommet as shown in the illustration.

      HINT:

      Leave the string inside the grommet.

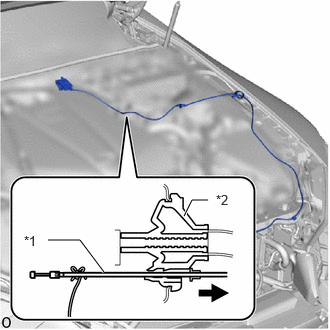

      GTY950387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Control Cable Assembly
      *2 Wire Harness Grommet
    3. Disconnect the string from the hood lock control cable assembly.
    4. Using a screwdriver with its tip wrapped in protective tape, detach the clamps and remove the grommet and hood lock control cable assembly.

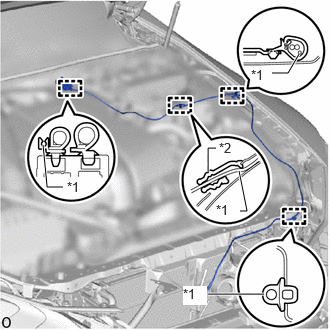

      GTY950917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Control Cable Assembly
      *2 Grommet
