Removal [05/2023 - ]: Procedure
- REMOVE FRONT BUMPER ASSEMBLY
Refer to REMOVAL [05/2023 - ]
- REMOVE FRONT FENDER REINFORCEMENT TOP SUB-ASSEMBLY LH

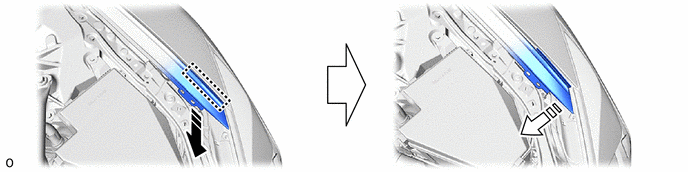

- Push the front tip of the front fender reinforcement top sub-assembly LH downwards to disconnect the hook.

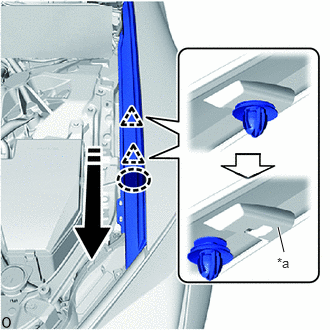

Downward Detach the hook - Hold the area shown in the illustration and pull towards the front of the vehicle to disconnect the clip from the base.

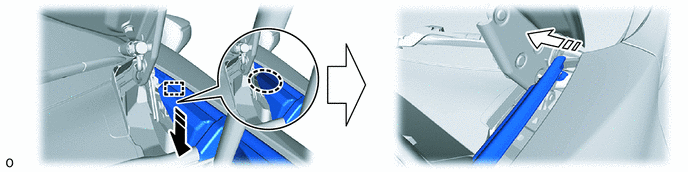

*a Base Place Hands Here Pull Forward - Hold the area shown in the illustration and push the rear end downwards to disconnect the hook.

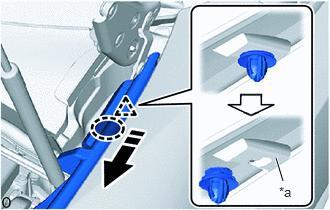

Place Hands Here Downward Detach the Hook - - *a Base Place Hands Here Pull Forward Hold the area shown in the illustration and pull towards the front of the vehicle to disconnect the clip from the base.

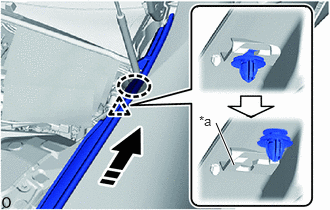

- Hold the area shown in the illustration and pull towards the rear of the vehicle to remove the front fender reinforcement top sub-assembly LH.

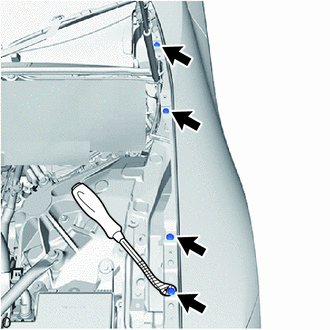

*a Base Place Hands Here Pull Backward Protective Tape Using a clip remover, remove the remaining clip and install the clip to the front fender reinforcement top sub-assembly LH.
HINT:
Tape the clip remover tip before use.
- Push the front tip of the front fender reinforcement top sub-assembly LH downwards to disconnect the hook.
- REMOVE HEADLIGHT ASSEMBLY LH
- Apply protective tape around the headlight assembly LH.

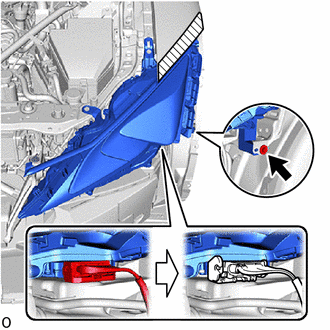

Protective Tape - Release the connector lock lever and disconnect the connector.

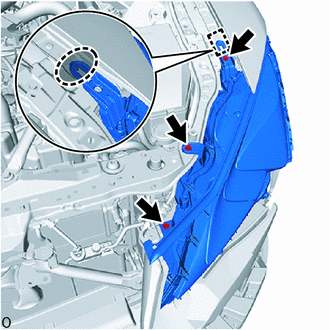

- Remove the bolt.
- Remove the 3 screws.
Place Hands Here - Place your hand on the bracket of the headlight assembly LH and disconnect the positioning pin.NOTE:
Be careful not to break the bracket.

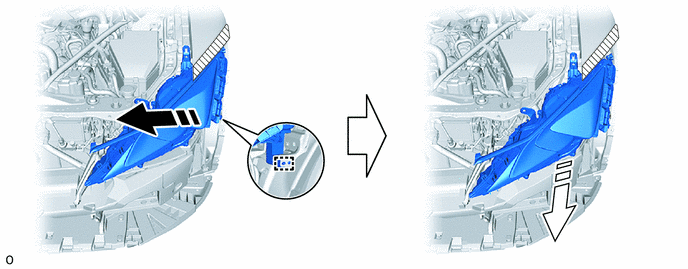

- Slide the headlight assembly LH and disconnect the guide.
- Slide the headlight assembly LH forward to remove it.
Slide Slide Forward
- Apply protective tape around the headlight assembly LH.
