Replacement [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT DRIVE SHAFT ASSEMBLY

    Refer to REMOVAL [06/2018 - ]

  2. REMOVE DRIVE SHAFT BEARING BRACKET

    Refer to PROCEDURE - Step 17 [06/2018 - 10/2019] , or refer to PROCEDURE - Step 17 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 17 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 17 [09/2022 - ]

  3. REMOVE FRONT DRIVE SHAFT OIL SEAL LH
    1. Using SST, remove the front drive shaft oil seal LH from the automatic transaxle case sub-assembly.
      GTY764963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Be careful not to damage the automatic transaxle case sub-assembly.

  4. REMOVE FRONT DRIVE SHAFT OIL SEAL RH
    1. Using SST, remove the front drive shaft oil seal RH from the transaxle housing.
      GTY732289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Be careful not to damage the transaxle housing.

  5. INSTALL FRONT DRIVE SHAFT OIL SEAL RH
    1. Using SST and a hammer, install a new front drive shaft oil seal RH to the transaxle housing.

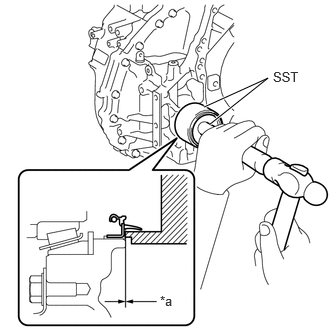

      GTY787497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Depth
      • SST: 09316-10010
      • SST: 09950-70010
        1. 09951-07150

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Make sure that the front drive shaft oil seal RH is installed in the correct direction.
      • Do not damage the lip of the front drive shaft oil seal RH.
  6. INSTALL FRONT DRIVE SHAFT OIL SEAL LH
    1. Using SST and a hammer, install a new front drive shaft oil seal LH to the automatic transaxle case sub-assembly.

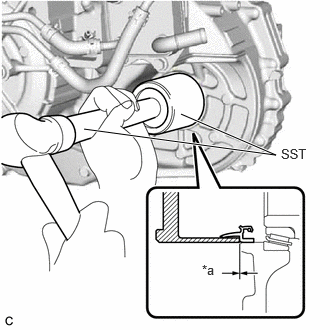

      GTY767057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Depth
      • SST: 09649-17010
      • SST: 09950-70010
        1. 09951-07100

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Make sure that the front drive shaft oil seal LH is installed in the correct direction.
      • Do not damage the lip of the front drive shaft oil seal LH.
  7. INSTALL DRIVE SHAFT BEARING BRACKET

    Refer to PROCEDURE - Step 4 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - ]

  8. INSTALL FRONT DRIVE SHAFT ASSEMBLY

    Refer to INSTALLATION [06/2018 - ]
