Removal [08/2016 - 12/2017]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [08/2016 - 12/2017]

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [10/2015 - 12/2017]

  3. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4

  5. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2016 - 12/2017]

  6. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [08/2016 - 12/2017]

  7. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 8

  8. REMOVE FUEL PUMP PROTECTOR

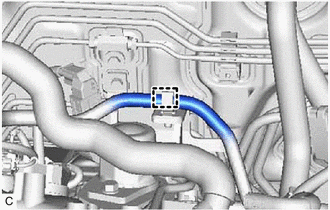

    1. Disengage the clamp to disconnect the fuel tube sub-assembly from the fuel pump protector.
      GTY649147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and fuel pump protector from the cylinder head sub-assembly.
      GTY668379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT NO. 2 FUEL TUBE SUB-ASSEMBLY

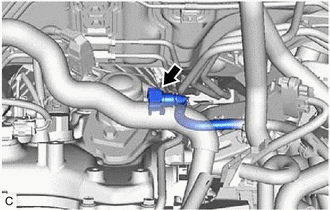

    1. Disconnect the No. 2 fuel tube sub-assembly from the fuel pump assembly.
      GTY649143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [10/2015 - 12/2017]

  10. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
    GTY613008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.

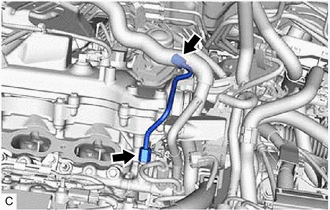

    1. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.
      GTY649124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

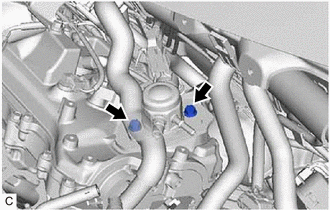

    2. Loosen the 2 bolts of the fuel pump assembly.
      GTY649125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the No. 1 fuel pipe sub-assembly from the fuel delivery pipe RH and fuel pump assembly.
  11. REMOVE FUEL PUMP ASSEMBLY

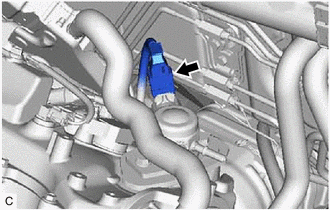

    1. Disconnect the fuel pump assembly connector.
      GTY680576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

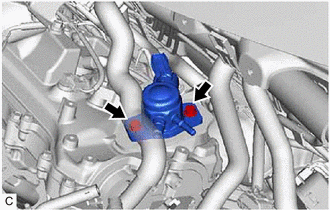

    2. Remove the 2 bolts, fuel pump assembly and fuel pump lifter guide from the cylinder head cover sub-assembly.
      GTY649123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the fuel pump assembly.
      GTY696252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

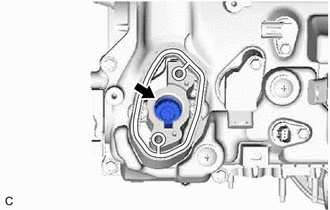

    4. Remove the fuel pump lifter assembly from the fuel pump lifter housing.
      GTY649169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

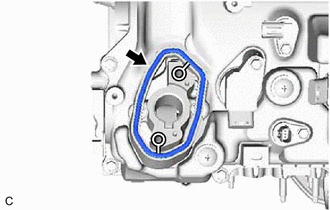

    5. Remove the fuel pump spacer gasket from the cylinder head cover sub-assembly.
      GTY649170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
