Removal [10/2015 - 08/2016]: Procedure

  1. DISCONNECT BRAKE BOOSTER PUMP CONNECTOR

    Refer to  2

  2. REMOVE REAR WHEEL

    Refer to PROCEDURE - Step 1

  3. REMOVE REAR SUSPENSION ARM COVER

    Refer to PROCEDURE - Step 3

  4. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE REAR DISC

    Refer to PROCEDURE - Step 16

  6. SEPARATE REAR SKID CONTROL SENSOR WIRE

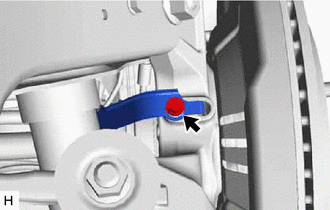

    1. Remove the bolt and separate the rear skid control sensor wire.
      GTY620575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

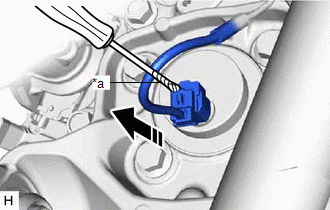

    2. Using a screwdriver with its tip wrapped with protective tape, disconnect the rear skid control sensor wire connector from the rear axle hub and bearing assembly.
      NOTE:

      Be careful not to damage the rear axle hub and bearing assembly.

      GTY639224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  7. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY
    1. Remove the rear axle hub and bearing assembly.

      Refer to PROCEDURE - Step 9

      HINT:

      • The rear speed sensor is a component of the rear axle hub and bearing assembly. If the rear speed sensor is malfunctioning, replace the rear axle hub and bearing assembly.
      • If the rear speed sensor rotor needs to be replaced, replace the rear axle hub and bearing assembly.
