Removal [10/2015 - ]: Procedure

Refer to PRECAUTION [10/2015 - ]

Refer to TEST MODE PROCEDURE [10/2015 - 08/2019] , or refer to TEST MODE PROCEDURE [08/2019 - ]

Refer to PROCEDURE - Step 2 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 2 [08/2016 - 03/2018] , or refer to PROCEDURE - Step 2 [03/2018 - 08/2018] , or refer to PROCEDURE - Step 2 [08/2018 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - ]

Refer to PROCEDURE - Step 1 [10/2015 - ]

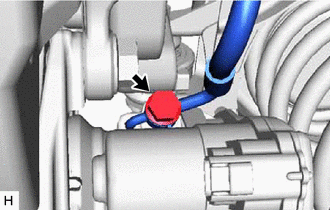

1. Remove the union bolt and gasket, and disconnect the rear flexible hose from the rear disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.
   NOTE:

   • Remove any dirt or foreign matter on and around the connector before performing this work.
   • Do not allow water, oil or dirt to enter the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

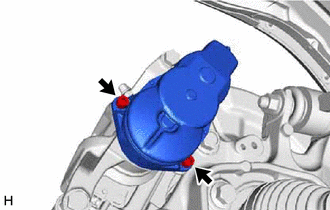

1. Using a 5 mm hexagon socket wrench, remove the 2 bolts and parking brake actuator assembly from the rear disc brake cylinder assembly.
   NOTE:

   • Check that there are no brake fluid leaks from the back of the rear disc brake cylinder assembly.
   • If there are any brake fluid leaks, replace the rear disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the rear disc brake cylinder assembly.

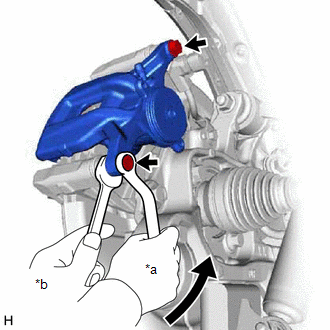

1. Hold the 2 rear disc brake cylinder slide pins and remove the 2 bolts and rear disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

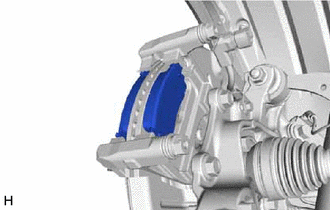

1. Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the rear No. 2 disc brake anti-squeal shim from the rear disc brake pad (inside).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear No. 1 Disc Brake Anti-squeal Shim
   *2	Rear No. 2 Disc Brake Anti-squeal Shim
   *3	Rear Disc Brake Pad Wear Indicator Plate

2. Remove the rear No. 1 disc brake anti-squeal shim from the rear disc brake pad (inside).
3. Remove the rear No. 2 disc brake anti-squeal shim from the rear disc brake pad (outside).
4. Remove the rear No. 1 disc brake anti-squeal shim from the rear disc brake pad (outside).
5. Remove the rear disc brake pad wear indicator plate from each rear disc brake pad.

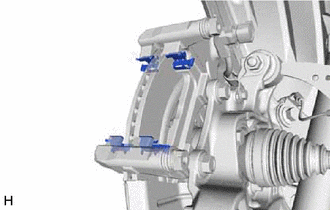

1. Remove the 4 rear disc brake pad support plates from the rear disc brake cylinder mounting.
   NOTE:

   Each rear disc brake pad support plate has a different shape. Be sure to put an identification mark on each rear disc brake pad support plate so that it can be reinstalled to its original position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

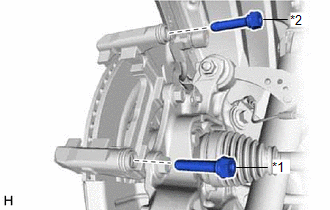

1. Remove the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin from the rear disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear No. 1 Disc Brake Cylinder Slide Pin
   *2	Rear No. 2 Disc Brake Cylinder Slide Pin

2. Using a screwdriver with its tip wrapped with protective tape, remove the rear disc brake cylinder slide bushing from the rear No. 2 disc brake cylinder slide pin.
   NOTE:

   Do not damage the rear No. 2 disc brake cylinder slide pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

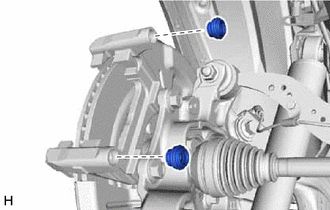

1. Remove the 2 rear disc brake bushing dust boots from the rear disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

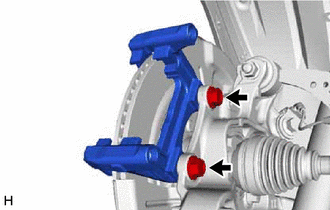

1. Remove the 2 bolts and rear disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

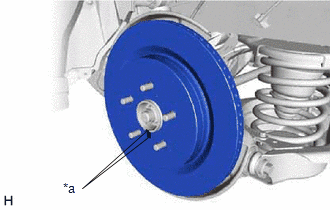

1. Put matchmarks on the rear disc and rear axle hub and bearing assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the rear disc.
