Removal [08/2016 - 08/2019]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2015 - 12/2017] , or refer to PRECAUTION [12/2017 - 08/2019]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2016 - 12/2017] , or refer to INITIALIZATION [12/2017 - 08/2019]

  3. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  4. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2

  6. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 20 [12/2017 - 08/2019]

  7. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 21 [12/2017 - 08/2019]

  8. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Using a screwdriver, disengage the 4 claws and disconnect the transmission control cable assembly with clip from the No. 1 transmission control cable bracket.
      GTY629598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disengage the 2 claws and remove the clip from the transmission control cable assembly.
      GTY444212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 TRANSMISSION CONTROL CABLE BRACKET
    1. Remove the 2 bolts and No. 1 transmission control cable bracket.
      GTY666614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE STARTER ASSEMBLY
    1. Remove the terminal cap.
      GTY666612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and disconnect terminal 30.
    3. Disconnect the starter assembly connector.

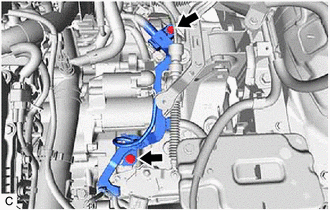

    4. Remove the 2 bolts and separate the wire harness.
      GTY957720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts and starter assembly.
      GTY666610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
