Removal [09/2015 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 1 [08/2016 - 08/2019] , or refer to PROCEDURE - Step 1 [08/2019 - ]

  2. REMOVE INLET AIR CLEANER ASSEMBLY

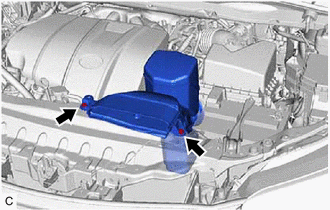

    1. Remove the 2 bolts and inlet air cleaner assembly from the air cleaner case sub-assembly.
      GTY659062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 VACUUM SWITCHING VALVE ASSEMBLY
    1. Disconnect the 2 vacuum hoses from the No. 2 vacuum switching valve assembly.
      GTY659061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the No. 2 vacuum switching valve assembly connector.
      GTY682757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and No. 2 vacuum switching valve assembly from the front engine mounting bracket.
