Reassembly [09/2015 - 12/2017]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2015 - 12/2017]

  2. INSTALL FRONT DOOR FRONT WINDOW FRAME MOULDING

    Refer to PROCEDURE - Step 1

  3. INSTALL COWL SIDE TRIM BOARD

    See step  2

  4. INSTALL FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 43

  5. INSTALL FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REPAIR INSTRUCTION

    Refer to PROCEDURE - Step 1

  7. INSTALL NO. 1 BLACK OUT TAPE

    Refer to PROCEDURE - Step 2

  8. INSTALL FRONT DOOR STRIPE

    Refer to PROCEDURE - Step 3

  9. INSTALL FRONT DOOR REAR OUTSIDE STRIPE

    Refer to PROCEDURE - Step 4

  10. INSTALL FRONT DOOR UPPER WINDOW FRAME MOULDING

    Refer to PROCEDURE - Step 4

  11. INSTALL FRONT DOOR REAR WINDOW FRAME MOULDING

    Refer to PROCEDURE - Step 5

  12. INSTALL FRONT DOOR BELT MOULDING ASSEMBLY

    Refer to PROCEDURE - Step 1

  13. INSTALL FRONT DOOR PANEL CUSHION
    1. Engage the claw to install the front door panel cushion.
      GTY623470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL FRONT DOOR FIX WINDOW GLASS
    1. Install the front door fix window glass to the front door fix window weatherstrip.
    2. Install the front door fix window glass with the front door fix window weatherstrip as shown in the illustration.
      GTY675328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  15. INSTALL FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY
    1. Install the front door front lower frame sub-assembly with the screw and 2 bolts.
      GTY641513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw

      Bolt

      Torque: 6.2 N*m (63 kgf*cm, 55 in.*lbf)

  16. INSTALL UPPER DOOR FRAME GARNISH
    1. Engage the 3 claws to install the upper door frame garnish.
      GTY617633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL FRONT DOOR VENT SEAL
    1. Install a new front door vent seal.
      GTY623457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL FRONT DOOR PANEL PROTECTOR
    1. Install a new front door panel protector.
      GTY623463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL FRONT DOOR WEATHERSTRIP
    1. Clean the front door panel.
    2. Remove the release paper from a new front door weatherstrip.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    3. Engage the 25 clips to install the front door weatherstrip.
      GTY681232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
  20. INSTALL FRONT DOOR CHECK ASSEMBLY
    1. Apply MP grease to the sliding parts of the front door check assembly.
    2. Clean the bolt hole in the vehicle body.
    3. Clean the threads of the bolt.
    4. Apply adhesive to the threads of the bolt.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

    5. Install the front door check assembly with the 2 nuts and bolt.
      GTY658152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Bolt

      Bolt

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

      Nut

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  21. INSTALL FRONT DOOR LOCK OPEN ROD
    1. Install the front door lock open rod as shown in the illustration.
      GTY682222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  22. INSTALL FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
    1. Apply MP grease to the sliding parts on the front door outside handle frame sub-assembly.
    2. Engage the claw as shown in the illustration.
      GTY662574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Outside
      *B Inside
    3. Using a T30 "TORX" socket wrench, install the front door outside handle frame sub-assembly with the screw.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  23. INSTALL FRONT DOOR LOCK WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 5

  24. INSTALL FRONT DOOR REAR OUTSIDE HANDLE PAD
    1. Engage the 3 guides as shown in the illustration.
      GTY628490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    2. Engage the claw to install the front door rear outside handle pad.
      GTY623503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL FRONT DOOR FRONT OUTSIDE HANDLE PAD
    1. Engage the 3 claws to install the front door front outside handle pad.
      GTY623502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)
    1. Engage the 2 guides and claw.
      GTY623501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T30 "TORX" socket wrench, install the front door outside handle cover with the screw.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

    3. Install the hole plug.
      GTY674916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)
    1. Using a T30 "TORX" socket wrench, install the front door lock cylinder assembly with the screw.
      GTY623500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

    2. Install the hole plug.

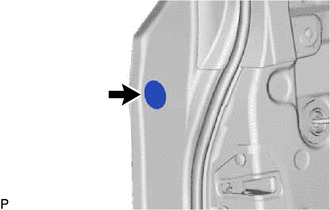

      GTY623511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL FRONT DOOR OUTSIDE HANDLE ASSEMBLY
    1. Insert the front end of the front door outside handle assembly into the front door outside handle frame sub-assembly.
      GTY664315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Insert the rear end of the front door outside handle assembly into the front door outside handle frame sub-assembly, then slide the front door outside handle assembly toward the front of the vehicle to install it.
    3. Move the lever as shown in the illustration and engage the 2 claws to lock the front door outside handle assembly.
      GTY631463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Engage in this Direction
    4. Connect the connector.
      GTY649294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the 2 claws.
    6. Engage the clamp.
  29. INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY
    1. Engage the guide as shown in the illustration.
      GTY673993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the front door rear lower frame sub-assembly with the 2 bolts.

      Torque: 6.2 N*m (63 kgf*cm, 55 in.*lbf)

  30. INSTALL FRONT DOOR GLASS RUN
    1. Install the front door glass run.
      GTY623516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL FRONT DOOR WINDOW REGULATOR ASSEMBLY
    1. Apply MP grease to the sliding parts of the front door window regulator assembly.
    2. Temporarily install the temporary bolt to the front door window regulator assembly.
    3. Temporarily install the front door window regulator assembly with the 5 bolts.
      Fig 1: Front Door Window Regulator Assembly Tightening Sequence [09/2015 - 12/2017]
      GTY627860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Temporary Bolt
    4. Tighten the temporary bolt and 5 bolts to install the front door window regulator assembly.

      HINT:

      Tighten the bolts in the order shown in the illustration.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    5. Connect the connector.
    6. Engage the 2 claws to install the front door No. 2 service hole cover.
      GTY649282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
    1. for Driver Side:
      1. Connect the multiplex network master switch assembly.
    2. for Front Passenger Side:
      1. Connect the power window regulator switch assembly.
    3. Connect the cable to the negative (-) battery terminal.
    4. Turn the engine switch on (IG).
    5. Move the front door window regulator assembly so that the door glass bolt holes can be seen.
    6. Turn the engine switch off.
    7. Disconnect the cable from the negative (-) battery terminal.
    8. for Driver Side:
      1. Disconnect the multiplex network master switch assembly.
    9. for Front Passenger Side:
      1. Disconnect the power window regulator switch assembly.
    10. Insert the front door glass sub-assembly into the front door panel along the front door glass run as shown in the illustration.
      GTY651843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    11. Install the front door glass sub-assembly with the 2 bolts.

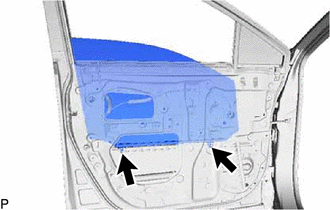

      GTY623526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    12. Install the hole plug.
      GTY623525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL DOOR SIDE AIRBAG SENSOR

    Refer to PROCEDURE - Step 1

  34. INSTALL FRONT DOOR SERVICE HOLE COVER
    1. Engage the 5 clips to install the front door service hole cover.
      GTY623529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 clamps.
      GTY623528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the front door weatherstrip clip 45 degrees to install the 4 front door weatherstrip clip as shown in the illustration.
      GTY649291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the connector.
  35. INSTALL FRONT DOOR NO. 1 TRIM BRACKET
    1. Install the front door No. 1 trim bracket with the 2 screws.
      GTY623638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 1

  37. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY

    Refer to PROCEDURE - Step 1

  38. INSTALL OUTER MIRROR INSTALL HOLE COVER

    Refer to PROCEDURE - Step 2

  39. INSTALL OUTER MIRROR PROTECTOR

    Refer to PROCEDURE - Step 3

  40. INSTALL OUTER MIRROR CONTROL ECU ASSEMBLY

    Refer to PROCEDURE - Step 1

  41. INSTALL FRONT DOOR TRIM POCKET
    1. Install front door trim pocket with the 8 screws.
      GTY674948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL DOOR LOCK CONTROL KNOB BEZEL
    1. Engage the 2 claws to install the door lock control knob bezel as shown in the illustration.
      GTY637564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  43. INSTALL FRONT DOOR AIR DUCT
    1. Engage the guide.
      GTY623636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front door air duct with the 4 screws.
  44. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP
    1. Engage the 6 claws to install the front door inner glass weatherstrip as shown in the illustration.
      GTY649324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL SEAT MEMORY SWITCH (w/ Memory)

    Refer to PROCEDURE - Step 1

  46. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
    1. Engage the 2 claws as shown in the illustration to connect the front door inside locking cable assembly to the front door trim board sub-assembly.
      GTY675449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the front door lock remote control cable assembly to the front door inside handle sub-assembly as shown in the illustration.
      GTY669964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Engage the 10 clips to install the front door trim board sub-assembly as shown in the illustration.
      GTY677671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the 3 screws.
      GTY623661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. INSTALL FRONT DOOR NO. 1 STIFFENER CUSHION
    1. Install the front door No. 1 stiffener cushion with the screw.
      GTY623660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. INSTALL COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  49. INSTALL DOOR ARMREST COVER
    1. Install the door armrest cover.
      GTY623668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
    1. Connect the connector.
    2. Engage the 4 guides and 4 clips to install the multiplex network master switch assembly with front door upper armrest base panel.
      GTY649306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
    1. Connect the connector.
    2. Engage the 2 claws to install the power window regulator switch assembly with front door upper armrest base panel.
      GTY649326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
    1. Engage the 3 claws to install the front door inside handle bezel plug.
      GTY680613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - 12/2017]

  54. INITIALIZE POWER WINDOW CONTROL SYSTEM

    Refer to INITIALIZATION [09/2015 - ]

  55. INSPECT POWER WINDOW OPERATION

    Refer to OPERATION CHECK [09/2015 - ]

  56. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM [09/2015 - 08/2016] , or refer to DIAGNOSIS SYSTEM [08/2016 - 12/2017]

  57. PERFORM INITIALIZATION (w/ Panoramic View Monitor System)

    Refer to INITIALIZATION [09/2015 - 08/2019]

  58. ADJUST SIDE TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to CALIBRATION [09/2015 - 12/2017]

scientia non olet · About LEMON Manuals
