Removal [09/2017 - ]: Procedure

  1. REMOVE NO. 2 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 1 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 1 [05/2019 - ]

  2. REMOVE NO. 1 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 2 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 2 [05/2019 - ]

  3. REMOVE PROTECTOR

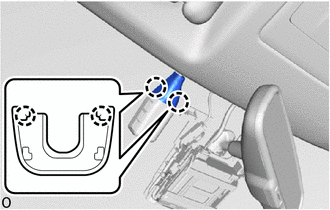

    GTY791954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 2 claws and remove the protector.
  4. REMOVE AIR CONDITIONING THERMISTOR ASSEMBLY (HUMIDITY SENSOR)

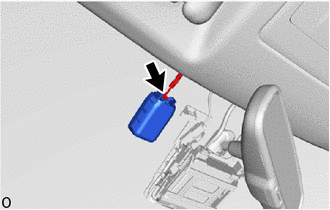

    GTY791953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Release the stopper by pulling it down.
      GTY508303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Stopper
    3. Remove the air conditioning thermistor assembly (humidity sensor) as shown in the illustration.
