Removal [10/2014 - ]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    See step  1 [10/2014 - 07/2020], or see step  1 [07/2020 - ]

  2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
    1. for Sport Package:

      Refer to PROCEDURE - Step 6 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 6 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - ]

    2. except Sport Package:

      Refer to PROCEDURE - Step 7 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 7 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 7 [05/2019 - ]

  3. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 8 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 8 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 8 [05/2019 - ]

  4. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 9 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 9 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 9 [05/2019 - ]

  5. REMOVE FAN AND GENERATOR V BELT

    Refer to PROCEDURE - Step 2

  6. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT LH

    Refer to PROCEDURE - Step 11

  7. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH

    Refer to PROCEDURE - Step 12

  8. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  9. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

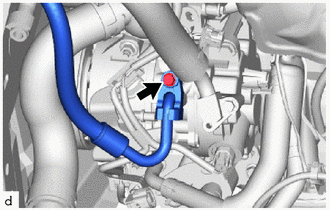

    1. Remove the bolt and disconnect the discharge hose sub-assembly.
      GTY514743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  10. DISCONNECT SUCTION HOSE SUB-ASSEMBLY

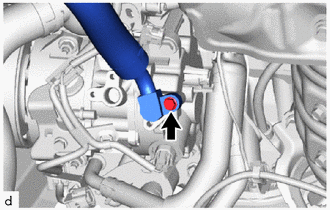

    1. Remove the bolt and disconnect the suction hose sub-assembly.
      GTY521293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  11. REMOVE COMPRESSOR ASSEMBLY WITH PULLEY

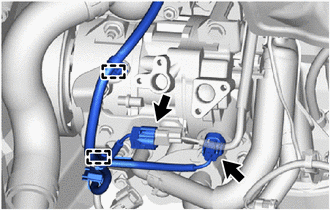

    1. Disconnect the 2 connectors.
      GTY514742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamps and disconnect the wire harness.

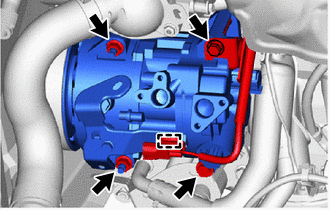

    3. Remove the 2 bolts and 2 nuts.
      GTY514741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the clamp.
    5. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and compressor assembly with pulley.
      GTY509085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
